Product Details:
Payment & Shipping Terms:
|
| Product Name: | White Plastic Circle Cable Wire Clips With Steel Nail - 100pce Per Pkt | Material: | PE And PP |
|---|---|---|---|
| Sample: | Free | OEM/ODM: | Accept |
| Type: | Circle And Square | Application: | Securing Of Calbes For General Indoor Wiring |
| High Light: | cable wall clips,electrical wire clips |
||

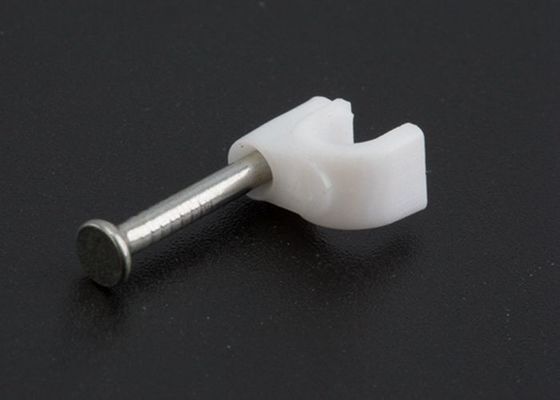

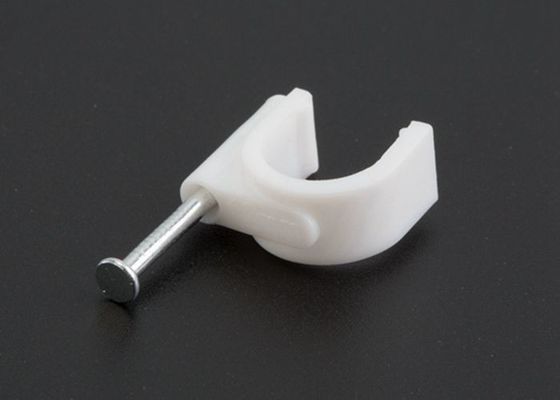

White Plastic Circle Cable Wire Clips with Steel Nail - 100pce per pkt
PRODUCT FEATURES
1.Material: PP/HDPE, steel nail.
2.Method: put the cable under the clip and hammer the nail into the wall to secure the cable.
3. Application: Securing of calbes for general indoor wiring
| Part No. | High (mm) |
R Circle Dia. (mm) |
Nail Size (mm) |
Pcs/Bag |
| JHY-4MM | 5.3 | 4.0 | 1.7 × 14 | 100 |
| JHY-5MM | 6.0 | 5.0 | 1.7 × 14 | |
| JHY-6MM | 8.0 | 6.0 | 1.82 ×16 | |
| JHY-7MM | 8.7 | 7.0 | 1.82 × 18 | |
| JHY-8MM | 9.5 | 8.0 | 1.95 × 19 | |
| JHY-9MM | 11.0 | 9.0 | 2.05 × 22 | |
| JHY-10MM | 12.0 | 10.0 | 2.1 × 23 | |
| JHY-12MM | 13.5 | 12.0 | 2.2 × 25 | |
| JHY-14MM | 16.5 | 14.0 | 2.3 × 30 | |
| JHY-16MM | 18.0 | 16.0 | 2.35 × 32 | |
| JHY-17MM | 20.0 | 17.0 | 2.6 × 38 | |
| JHY-18MM | 20.5 | 18.0 | 2.6 × 38 | |
| JHY-20MM | 22.5 | 20.0 | 2.7 × 40 | |
| JHY-22MM | 23.5 | 22.0 | 2.9 × 43 | |
| JHY-25MM | 26.5 | 25.0 | 3.1 × 50 | |
| JHY-30MM | 32.5 | 30.0 | 3.5 × 55 | |
| JHY-32MM | 34.5 | 32.0 | 3.5 × 55 | |
| JHY-35MM | 38.0 | 35.0 | 3.5×60 | |
| JHY-40MM | 43.8 | 40.0 | 3.5×65 |
