Insulation Slotted PVC Wiring Duct , Electrical Wire Raceway 60 Width X 60mm High

China Insulation Slotted  PVC Wiring Duct , Electrical Wire Raceway 60 Width X 60mm High supplier
Insulation Slotted  PVC Wiring Duct , Electrical Wire Raceway 60 Width X 60mm High supplier Insulation Slotted  PVC Wiring Duct , Electrical Wire Raceway 60 Width X 60mm High supplier

Large Image :  Insulation Slotted PVC Wiring Duct , Electrical Wire Raceway 60 Width X 60mm High

Product Details:

Place of Origin: China
Brand Name: JIUHONG
Certification: SGS,ISO9001
Model Number: PXC

Payment & Shipping Terms:

Minimum Order Quantity: 1000-10000pcs
Price: Negotiable
Packaging Details: 2 meters/pcs
Delivery Time: 3-7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000Cartons/month
Contact Now
Detailed Product Description
Product Name: Grey Color Insulation Slotted PVC Wiring Duct 60Width X 60mmHigh Fireproof: 94V-0
Insulation: Good Insulation Design: Solid Design
Lid: The Lid Can Be Open Advantage: Dustprrof,waterproof,easy To Install And Dismantle
High Light:

cable wall clips

,

plastic cable clips

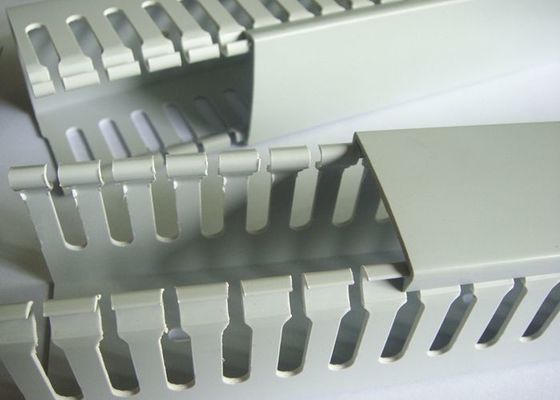

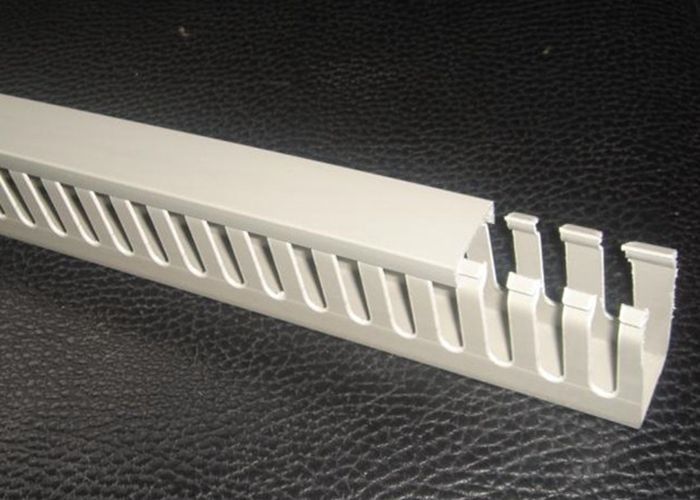

Grey Color Insulation Slotted PVC Wiring Duct 60Width x 60mmHigh



Material:High-quality PVC



Structure:Consists of cover and bottom,features parallel holes on both sidewalls to facilitate cutting in wire application.



Advantage:1.Up to 2500V insulation.Maximun service temperature to 550℃. Warp-proof UL-94-V0



2.Good design and advanced process.strongly united for cover and bottom,smoothly covers,no edges,all that protect the wires efficiency.



3.Low slotted,easy combination,simple assembled.



Insulation Slotted  PVC Wiring Duct , Electrical Wire Raceway 60 Width X 60mm High



ITEM NO. SIZE
(H × W)
2㎡Wire To Be Contained SLOT TYPE PCS/CTN COLOR LENGTH
PXC-3-2015 20mm × 15mm 5--12PCS H U 100





GREY

BLUE

WHITE
2M
PXC-3-2525 25mm × 25mm 10--25PCS H U 50
PXC-3-3015 30mm × 15mm 5--15PCS H U 100
PXC-3-3020 30mm × 20mm 10--20PCS H U 50
PXC-3-3025 30mm × 25mm 15--25PCS H U 50
PXC-3-3030 30mm × 30mm 20--30PCS H U 50
PXC-3-3035 30mm × 35mm 25--40PCS H U 50
PXC-3-3525 35mm × 25mm 15--25PCS H U 50
PXC-3-3535 35mm × 35mm 20--25PCS H U 50
PXC-3-4025 40mm × 25mm 20--25PCS H O U K 50
PXC-3-4030 40mm × 30mm 40--45PCS H O U K 50
PXC-3-4035 40mm × 35mm 40--45PCS H O U K 50
PXC-3-4040 40mm × 40mm 60--70PCS H O U K 50
PXC-3-4545 45mm × 45mm 70--90PCS H O U K 50
PXC-3-5020 50mm × 20mm 15--20PCS H O U K 50
PXC-3-5025 50mm × 25mm 20--25PCS H O U K 50
PXC-3-5030 50mm × 30mm 30--40PCS H O U K 50
PXC-3-5035 50mm × 35mm 50-60PCS H O U K 50
PXC-3-5040 50mm × 40mm 60--70PCS H O U K 50
PXC-3-5045 50mm × 45mm 70--80PCS H O U K 50
PXC-3-5050 50mm × 50mm 80--90PCS H O U K 50
PXC-3-5055 50mm × 55mm 90--100PCS H O U K 50
PXC-3-5060 50mm × 60mm 100--120PCS H O U K 50
PXC-3-5080 50mm × 80mm 150--200PCS H O U K 50
PXC-3-50100 50mm × 100mm 200--250PCS H O U K 50
PXC-3-6025 60mm × 25mm 30--40PCS H O U K 50
PXC-3-6030 60mm × 30mm 30--50PCS H O U K 50
PXC-3-6035 60mm × 35mm 60--80PCS H O U K 50
PXC-3-6040 60mm × 40mm 100--110PCS H O U K 50
PXC-3-6045 60mm × 45mm 110--120PCS H O U K 50
PXC-3-6050 60mm × 50mm 110--125PCS H O U K 50
PXC-3-6060 60mm × 60mm 110-120PCS H O U K 40
PXC-3-6545 65mm × 45mm 100--130PCS H O U K 50
PXC-3-8025 80mm × 25mm 100--120PCS H O U K 40
PXC-3-8035 80mm × 35mm 110--120PCS H O U K 30
PXC-3-8040 80mm × 40mm 120--135PCS H O U K 30
PXC-3-8045 80mm × 45mm 120--140PCS H O U K 30
PXC-3-8050 80mm × 50mm 130--180PCS H O U K 30
PXC-3-8055 80mm × 55mm 135--190PCS H O U K 30
PXC-3-8060 80mm × 60mm 180--210PCS H O U K 30
PXC-3-8080 80mm × 80mm 240--290PCS H O U K 18
PXC-3-80100 80mm × 100mm 260--350PCS H O U K 20
PXC-3-10050 100mm × 50mm 130--180PCS H O U K 20
PXC-3-10060 100mm × 60mm 240--290PCS H O U K 20
PXC-3-10080 100mm × 80mm 260--350PCS H O U K 20
PXC-3-100100 100mm × 100mm 300--400PCS H O U K 20
