Product Details:
Payment & Shipping Terms:
|
| Product Name: | Waterproof R Type Nylon66 Cable Wire Clips With White And Black Color | Material: | Nylon |
|---|---|---|---|
| Color: | White And Black | Flame Class: | 94v-2 |
| Usage: | Put Cable In,fic By Screw | Size: | 1/8 To 1 Inch |
| High Light: | cable wall clips,electrical wire clips |
||

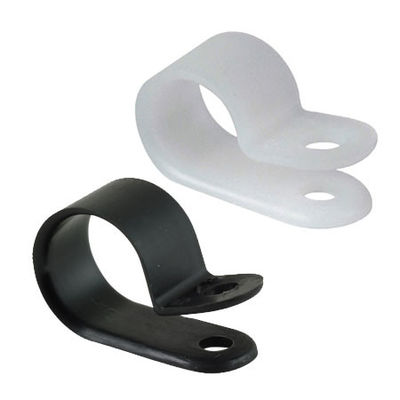

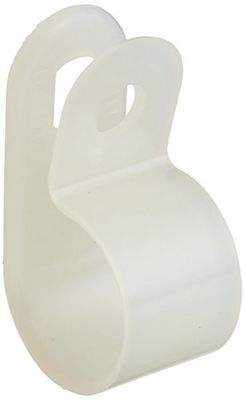

Waterproof R Type Nylon66 Cable Wire Clips with white and black color
Material: nylon 66 94v-2 agreed by UL
Usage: put cable in,fic by screw
Cable Clamps make wiring and cable installations clean and well organized. These cable clamps allow you to easily mount cable bundles to the wall ceiling or any surface desired. A through-hole acmodates the fastener of your choice ideal for attaching the clamp to existing hardware on a rack or in a desk
| Item No. | A | B | C | D | E | Inner Packing |
| mm | mm | mm | mm | mm | ||
| JH-3.3 1/8" | 9.5 | 9 | 3.3 | 17 | 4.0 | 1000PCS |
| JH-5.2 3/16" | 10.5 | 9.6 | 5.5 | 18.5 | 4.0 | 1000PCS |
| JH-6.4 1/4" | 12 | 9.6 | 6.35 | 21 | 4.0 | 1000PCS |
| JH-8.4 5/16" | 12.5 | 9.6 | 8.35 | 22.8 | 4.0 | 1000PCS |
| JH-10.4 3/8" | 13.5 | 9.6 | 10.35 | 23.8 | 4.0 | 1000PCS |
| JH-13.2 1/2" | 13.5 | 9.6 | 12.7 | 25.8 | 4.0 | 1000PCS |
| JH-16.2 5/8" | 16.5 | 9.6 | 15.8 | 30.5 | 4.0 | 1000PCS |
| JH-19.2 3/4" | 17 | 12 | 19 | 35.5 | 4.5 | 500PCS |
| JH-25 1" | 26 | 13 | 25 | 44 | 5.0 | 200PCS |
| JH-30 11/16" | 23 | 12.7 | 30 | 47 | 5.0 | 200PCS |
| JH-50 11/2" | 41 | 12.5 | 50 | 77 | 5.0 | 100PCS |
