Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fireproof Coated Stainless Steel Cable Ties - Stainless Steel 201 / 304 / 316 | Material: | Stainless Steel 304 |
|---|---|---|---|
| Application: | Shipbuilding Industry,Oil Pipeline,Power Industry,Communications | Size: | 4.8x300mm Steel Ties |
| Color: | Black ,Red,Yellow,Blue | Other Properties: | UV-resistant, Non Toxic |
| High Light: | pvc coated stainless steel cable ties,plastic coated stainless steel cable ties |
||

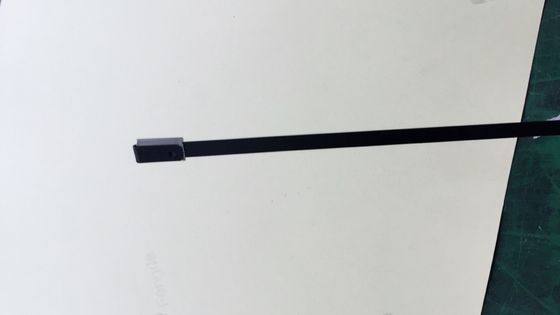

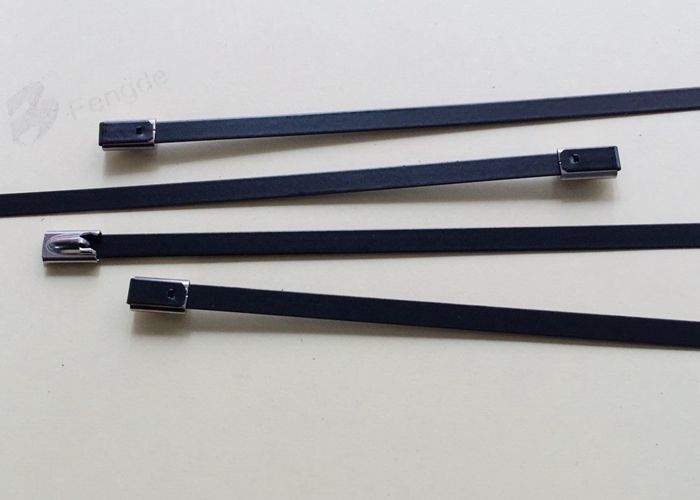

Fireproof Coated Stainless Steel Cable Ties - Stainless Steel 201 / 304 / 316
Description
Coated Stainless Steel Cable Ties are designed to secure several electronic cables or wires together cables onto PV system. The cable ties are available in corrosion resistant stainless steel suitable for rigorous corrosive conditions, which provides a strong durable method of cable bundling.
The Coated Stainless Steel Cable Ties have unique self-locking mechanism allows easy and quick operation. Full or partial PVC coated tie provides superior insulation and protection of cable.
Technical Information
Coated Stainless Steel Cable Ties are made of stainless steel grade 201,304 or 316,working temp:-80℃ to 150℃
Flammability: Fireproof
Other Properties: UV-resistant, non toxic
Q1: Are you trading company or manufacturer ?
A1: We are factory.
Q2: How long is your delivery time?
A2: Generally it is 3-5 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.
| Part No. | Approx. length. mm(inch) |
Approx. width mm(inch) |
Thickness mm |
Max. Bundle Dia. mm(inch) |
Min.loop tensile strength N(lbs) |
Pcs/Bag |
| JHCP-4.6 x 150 | 150(5.9) | 4.6(0.181) | 0.4 | 37(1.46) | 600(135) | 100 |
| JHCP-4.6 x 200 | 200(7.87) | 50(1.97) | ||||
| JHCP-4.6 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCP-4.6 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCP-4.6 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCP-4.6 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCP-4.6 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCP-4.6 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCP-4.6 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCP-4.6 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCP-7.9 x 150 | 150(5.9) | 7.9(0.311) | 0.4 | 37(1.46) | 800(180) | 100 |
| JHCP-7.9 x 200 | 200(7.87) | 50(1.97) | ||||
| JHCP-7.9 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCP-7.9 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCP-7.9 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCP-7.9 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCP-7.9 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCP-7.9 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCP-7.9 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCP-7.9 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCP-7.9 x 650 | 650(25.59) | 167(6.57) | ||||
| JHCP-7.9 x 700 | 700(27.56) | 180(7.09) | ||||
| JHCP-7.9 x 750 | 750(29.53) | 191(7.52) | ||||
| JHCP-7.9 x 800 | 800(31.5) | 193(7.59) | ||||
| JHCP-12 x 150 | 150(5.9) | 12(0.472) | 0.4 | 37(1.46) | 1200(270) | 100 |
| JHCP-12 x 200 | 200(7.87) | 50(1.97) | ||||
| JHCP-12 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCP-12 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCP-12 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCP-12 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCP-12 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCP-12 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCP-12 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCP-12 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCP-12 x 650 | 650(25.59) | 167(6.57) | ||||
| JHCP-12 x 700 | 700(27.56) | 180(7.09) | ||||
| JHCP-15 x 200 | 200(7.87) | 15(0.59) | 0.55 | 50(1.97) | 1500(337) | 100 |
| JHCP-15 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCP-15 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCP-15 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCP-15 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCP-15 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCP-15 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCP-15 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCP-15 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCP-15 x 650 | 650(25.59) | 167(6.57) | ||||
| JHCP-15 x 700 | 700(27.56) | 180(7.09) | ||||
| JHCP-15 x 750 | 750(29.53) | 191(7.52) | ||||
| JHCP-15 x 800 | 800(31.5) | 193(7.59) | ||||
| JHCP-15 x 1000 | 1000(39.37) | 206(8.11) |
