Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fully Coated SS304 Reusable Stainless Steel Cable Ties For Use In Communication | Width: | 6.3 And 9.5mm |
|---|---|---|---|
| Material: | Stainless Steel | Sample: | Free |
| Applications: | Power Stations, Mining, Shipbuilding, Offshore And Other Aggressive Environments. | Length: | Accept Customized |
| High Light: | reusable metal zip ties,heavy duty reusable zip ties |
||

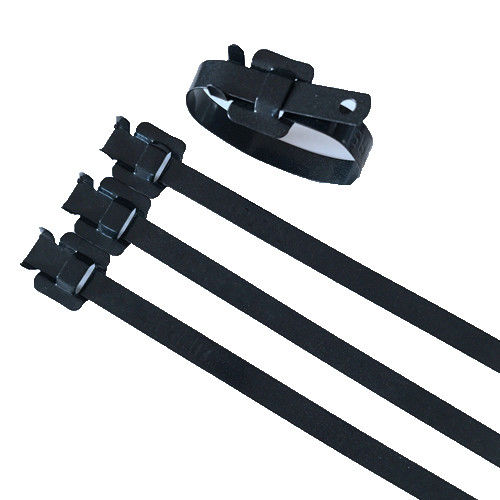

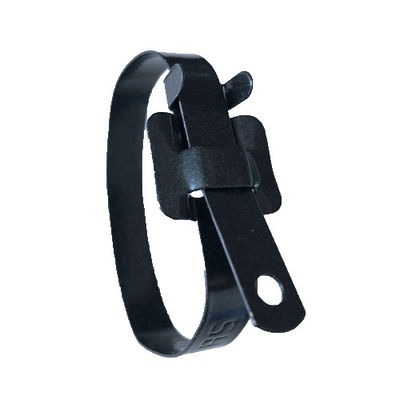

Fully Coated SS304 Reusable Stainless Steel Cable Ties for use in communication
Description
Releasable and Re-usable
Fast, easy and reliable installation.
slots at the end of the tie allow the use of a hook-type tool.
Additional ears can be bent back over the fastened tie to increase the tensile strength.
Fully coated version with non-toxic, halogen free polyester coating.
Provides additional edge protection.
Prevent the corrosion between dissimilar materials.
Applications
Ideal for used in Petrochemical, industries, power stations, mining, shipbuilding, offshore and other aggressive environments.
Technical Information
Material: Stainless Steel Type 304 or 316
304 grade stainless steel, for standard applications.
316 grade stainless steel, for the most corrosive environments.
Working Temp.: -80℃ to 150℃
Description: Entirely Black
Flammability: Fireproof
Other Properties: UV-resistant, Halogen Free, Non-toxic;
| Part No. | Approx.Length mm(inch) |
Approx.Width mm(inch) |
Thickness mm |
Max. bundle Dia. mm(inch) |
Min. loop tensile strength mm(inch) |
Pcs/bag |
| JHRUS-6.3 x 150 | 150(509) | 6.3(0.25) | 0.4 | 33(1.3) | 800(180) | 100 |
| JHRUS-6.3 x 190 | 190(7.5) | 46(1.8) | ||||
| JHRUS-6.3 x 250 | 250(9.8) | 65(2.6) | ||||
| JHRUS-6.3 x 300 | 300(11.8) | 81(3.2) | ||||
| JHRUS-6.3 x 350 | 350(13.8) | 97(3.8) | ||||
| JHRUS-9.5 x 400 | 400(15.7) | 9.5(0.37) | 0.4 | 113(4.4) | 1000(225) | 100 |
| JHRUS-9.5 x 450 | 450(17.5) | 129(5.1) | ||||
| JHRUS-9.5 x 490 | 490(19.3) | 141(5.6) | ||||
| JHRUS-9.5 x 550 | 550(21.7) | 161(6.3) | ||||
| JHRUS-9.5 x 600 | 600(23.6) | 176(6.9) | ||||
| JHRUS-9.5 x 650 | 650(25.6) | 192(7.6) | ||||
| JHRUS-9.5 x 700 | 700(27.6) | 208(8.2) |
| Part NO. | Approx.Length mm(inch) |
Approx.Width mm(inch) |
Thickness mm |
Max. bundle Dia. mm(inch) |
Min. loop tensile strength mm(inch) |
Pcs/bag |
| JHRBS-6.3 x 150 | 150(509) | 6.3(0.25) | 1.2 | 33(1.3) | 800(180) | 100 |
| JHRBS-6.3 x 190 | 190(7.5) | 46(1.8) | ||||
| JHRBS-6.3 x 250 | 250(9.8) | 65(2.6) | ||||
| JHRBS-6.3 x 300 | 300(11.8) | 81(3.2) | ||||
| JHRBS-6.3 x 350 | 350(13.8) | 97(3.8) | ||||
| JHRBS-9.5 x 400 | 400(15.7) | 9.5(0.37) | 1.2 | 113(4.4) | 1000(225) | 100 |
| JHRBS-9.5 x 450 | 450(17.5) | 129(5.1) | ||||
| JHRBS-9.5 x 490 | 490(19.3) | 141(5.6) | ||||
| JHRBS-9.5 x 550 | 550(21.7) | 161(6.3) | ||||
| JHRBS-9.5 x 600 | 600(23.6) | 176(6.9) | ||||
| JHRBS-9.5 x 650 | 650(25.6) | 192(7.6) | ||||
| JHRBS-9.5 x 700 | 700(27.6) | 208(8.2) |
