Product Details:
Payment & Shipping Terms:
|
| Product Name: | Coated Stainless Steel Cable Ties - Ball - Lock Polyester Coated Ties | Material: | Stainless Steel With Polyester |
|---|---|---|---|
| Application: | Shipbuilding Industry,Oil Pipeline,Power Industry,Communications | Sampe: | Free |
| Width: | 3.7mm To 20mm | Color: | Black |
| High Light: | pvc coated stainless steel cable ties,plastic coated stainless steel cable ties |
||

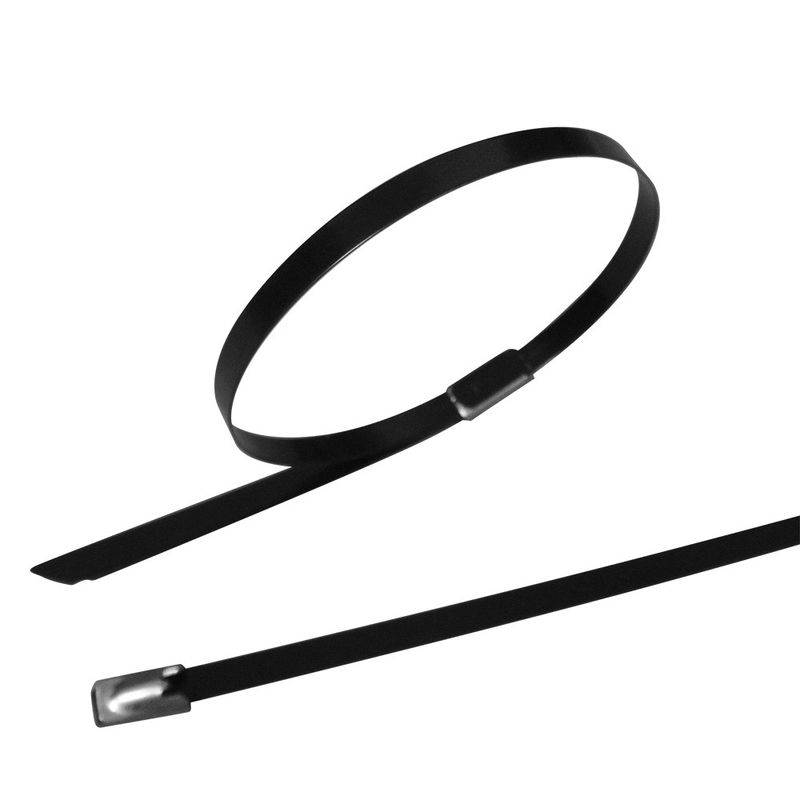

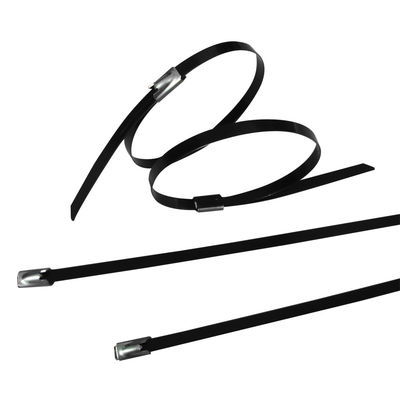

Coated Stainless Steel Cable Ties - Ball - Lock Polyester Coated Ties
Description
Coated Stainless Steel Cable Ties are designed to secure several electronic cables or wires together cables onto PV system. The cable ties are available in corrosion resistant stainless steel suitable for rigorous corrosive conditions, which provides a strong durable method of cable bundling.
The Coated Stainless Steel Cable Ties have unique self-locking mechanism allows easy and quick operation. Full or partial PVC coated tie provides superior insulation and protection of cable.
Technical Information
Coated Stainless Steel Cable Ties are made of stainless steel grade 201,304 or 316,working temp:-80℃ to 150℃
Flammability: Fireproof
Other Properties: UV-resistant, non toxic
| Part No. | Approx. length. mm(inch) |
Approx. width mm(inch) |
Thickness mm |
Max. Bundle Dia. mm(inch) |
Min.loop tensile strength N(lbs) |
Pcs/Bag |
| JHCP-4.6 x 150 | 150(5.9) | 4.6(0.181) | 0.4 | 37(1.46) | 600(135) | 100 |
| JHCP-4.6 x 200 | 200(7.87) | 50(1.97) | ||||
| JHCP-4.6 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCP-4.6 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCP-4.6 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCP-4.6 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCP-4.6 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCP-4.6 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCP-4.6 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCP-4.6 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCP-7.9 x 150 | 150(5.9) | 7.9(0.311) | 0.4 | 37(1.46) | 800(180) | 100 |
| JHCP-7.9 x 200 | 200(7.87) | 50(1.97) | ||||
| JHCP-7.9 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCP-7.9 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCP-7.9 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCP-7.9 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCP-7.9 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCP-7.9 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCP-7.9 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCP-7.9 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCP-7.9 x 650 | 650(25.59) | 167(6.57) | ||||
| JHCP-7.9 x 700 | 700(27.56) | 180(7.09) | ||||
| JHCP-7.9 x 750 | 750(29.53) | 191(7.52) | ||||
| JHCP-7.9 x 800 | 800(31.5) | 193(7.59) | ||||
| JHCP-12 x 150 | 150(5.9) | 12(0.472) | 0.4 | 37(1.46) | 1200(270) | 100 |
| JHCP-12 x 200 | 200(7.87) | 50(1.97) | ||||
| JHCP-12 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCP-12 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCP-12 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCP-12 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCP-12 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCP-12 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCP-12 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCP-12 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCP-12 x 650 | 650(25.59) | 167(6.57) | ||||
| JHCP-12 x 700 | 700(27.56) | 180(7.09) | ||||
| JHCP-15 x 200 | 200(7.87) | 15(0.59) | 0.55 | 50(1.97) | 1500(337) | 100 |
| JHCP-15 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCP-15 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCP-15 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCP-15 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCP-15 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCP-15 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCP-15 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCP-15 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCP-15 x 650 | 650(25.59) | 167(6.57) | ||||
| JHCP-15 x 700 | 700(27.56) | 180(7.09) | ||||
| JHCP-15 x 750 | 750(29.53) | 191(7.52) | ||||
| JHCP-15 x 800 | 800(31.5) | 193(7.59) | ||||
| JHCP-15 x 1000 | 1000(39.37) | 206(8.11) |
