Product Details:
Payment & Shipping Terms:
|
| Product Name: | 12mm Width SS316 Pvc Coated Stainless Steel Wire Ties For Use In Offshore | Length: | All Length Are Avaliable |
|---|---|---|---|
| Product Features: | High Tensile Strength,Non-Flammability,Quickly Installed | OEM/ODM: | Accept |
| Width: | 8mm,12mm,15mm,16mm,19mm,20mm | Material: | Stainless Steel |
| High Light: | stainless steel wire cable ties,stainless steel exhaust ties |
||

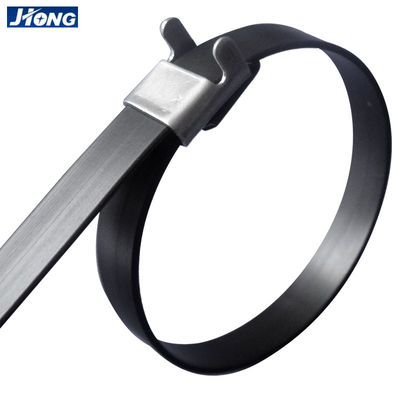

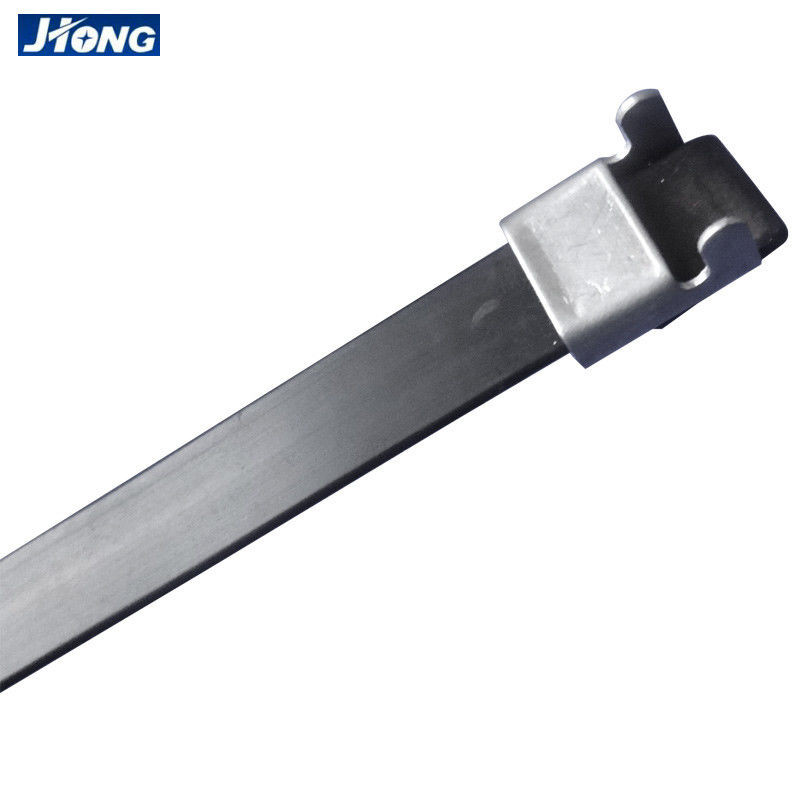

12mm width SS316 pvc coated stainless steel wire ties for use in offshore
Product Feature
Coated strap with non-toxic, halogen free polyester coating
Provides additional edge protection.
Prevent the corrosion between dissimilar materials.
Metallic buckle helps to distinguish from black nylon tie.
Applications:
Ideal for petrochemical, traffic signal facilities, oil and gas transmission, telecommunication, power station, mining, car/plane/ship-building, offshore and any other aggressive environments.
Technical Information
Material: Stainless Steel Grade 304 or 316
304 grade stainless steel, for standard applications
316 grade(marine grade) stainless steel, for extra corrosive environments
Working Temp.: -60℃ to 150℃
Description: Black Strap with Metallic Buckle
Flammability: Fireproof
Other Properties: UV-resistant, Halogen free, non toxic
| Part No. | Approx. Length mm(inch) |
Approx.width mm(inch) |
Thickness | Max,bundle Dia. mm(inch) |
Min,loop tensile strength N(lbs) |
Pcs/bag |
| JHLC-12 x 200 | 200(7.87) | 12(0.51) | 1.2 | 50(1.97) | 1200(270) | 100 |
| JHLC-12 x 250 | 250(9.84) | 63(2.48) | 100 | |||
| JHLC-12 x 300 | 300(11.8) | 76(2.99) | 100 | |||
| JHLC-12 x 350 | 350(13.78) | 89(3.5) | 100 | |||
| JHLC-12 x 400 | 400(15.75) | 102(4.02) | 100 | |||
| JHLC-12 x 450 | 450(17.72) | 115(4.53) | 100 | |||
| JHLC-12 x 500 | 500(19.69) | 128(5.04) | 100 | |||
| JHLC-12 x 550 | 550(21.65) | 141(5.55) | 100 | |||
| JHLC-12 x 600 | 600(23.62) | 154(6.06) | 100 | |||
| JHLC-12 x 650 | 650(25.59) | 167(6.57) | 100 | |||
| JHLC-12 x 700 | 700(27.56) | 180(7.09) | 100 | |||
| JHLC-15 x 200 | 200(7.87) | 16(0.63) | 1.2 | 50(1.97) | 1500(337) | 100 |
| JHLC-16 x 250 | 250(9.84) | 63(2.48) | 100 | |||
| JHLC-16 x 300 | 300(11.8) | 76(2.99) | 100 | |||
| JHLC-16 x 350 | 350(13.78) | 89(3.5) | 100 | |||
| JHLC-16 x 400 | 400(15.75) | 102(4.02) | 100 | |||
| JHLC-16 x 450 | 450(17.72) | 115(4.53) | 100 | |||
| JHLC-16 x 500 | 500(19.69) | 128(5.04) | 100 | |||
| JHLC-16 x 550 | 550(21.65) | 141(5.55) | 100 | |||
| JHLC-16 x 600 | 600(23.62) | 154(6.06) | 100 | |||
| JHLC-16 x 650 | 650(25.59) | 167(6.57) | 100 | |||
| JHLC-16 x 700 | 700(27.56) | 180(7.09) | 100 |
