Self Locking Metal Cable Wrap , Ladder Style Cable Ties With High Tensile Strength

China Self Locking Metal Cable Wrap , Ladder Style Cable Ties With High Tensile Strength supplier
Self Locking Metal Cable Wrap , Ladder Style Cable Ties With High Tensile Strength supplier Self Locking Metal Cable Wrap , Ladder Style Cable Ties With High Tensile Strength supplier

Large Image :  Self Locking Metal Cable Wrap , Ladder Style Cable Ties With High Tensile Strength

Product Details:

Place of Origin: China
Brand Name: JIUHONG
Certification: UL,SGS,CE,ISO9001
Model Number: JHJS

Payment & Shipping Terms:

Minimum Order Quantity: 1000-10000pcs
Price: Negotiable
Packaging Details: 100pcs/polybag or 50pcs/polybag
Delivery Time: 2-7workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000000pcs/month
Contact Now
Detailed Product Description
Product Name: SS 316 Self Locking Stainless Steel Ladder Cable Tie Color: Natural
Applications: Telecommunication,Electricity,Shipbuilding,Oil&gas Industry Sample: Free Sample
Width: 4.6mm,7mm And 12mm Material: Stainless Steel 316
High Light:

ladder type stainless steel cable ties

,

metal reinforced zip ties

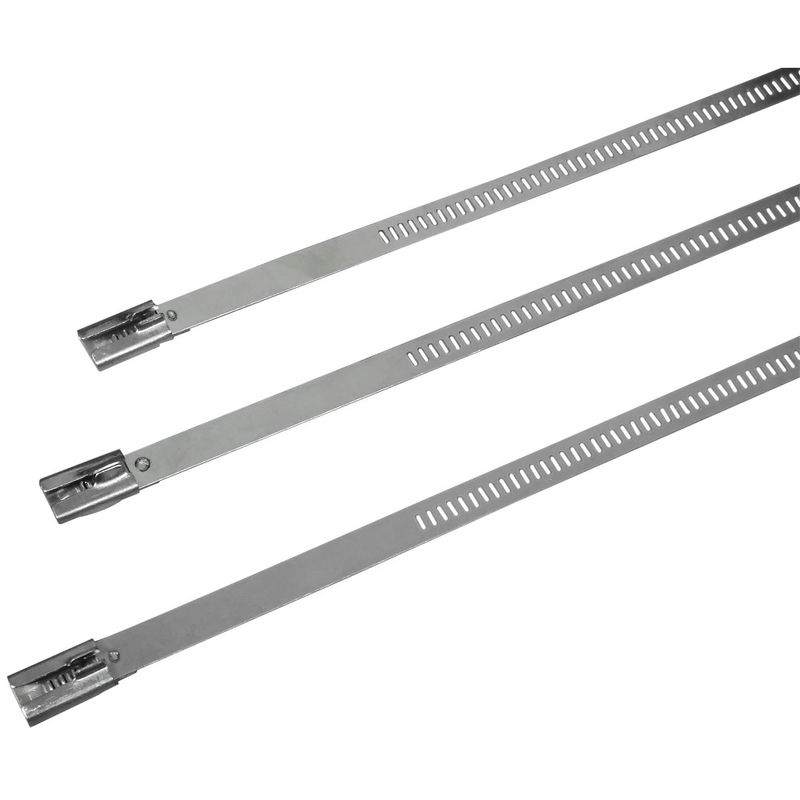

SS 316 Self Locking Stainless Steel Ladder Cable Tie with high tensile strength



Description



1, Strong self-locking mechanism(Pawl and ratchet) saves time on installation.
2, Flat and low profile head(no sharp edge), for easy installation.
3, Larger slot at the end, allows the use of a hook-type tool.

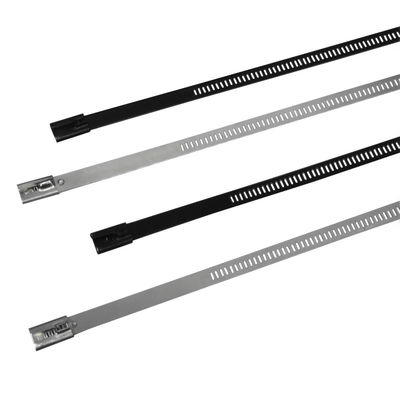

4, Fully coated version with non-toxic, halogen free polyester coating.
5, Provides additional edge protection.
6, Prevent the corrosion between dissimilar materials.


Applications


Ideal for used in Petrochemical and food processing industries, power stations, mining, shipbuilding, offshore and other aggressive environments.


Technical Inoformation


Material: Stainless Steel Grade 304 or 316


304 grade stainless steel, for standard applications.


316 grade stainless steel, for the most corrosive environments.


Working Temp.: -80℃ to 150℃


Color : Entirely Black


Flammability: Fireproof


Other Properties: UV-resistant, Halogen Free, Non-toxic;



Self Locking Metal Cable Wrap , Ladder Style Cable Ties With High Tensile Strength



Part NO. Approx.Length
mm(inch)
Approx.Width
mm(inch)
Thickness
mm
Max. bundle Dia.
mm(inch)
Min. loop
tensile strength
mm(inch)
Pcs/bag
JHJS-7 x 150 150(5.9) 7(0.276) 0.4 33(1.3) 1120(252) 100
JHJS-7 x 225 225(8.86) 57(2.2)
JHJS-7 x 300 300(11.8) 81(3.2)
JHJS-7 x 335 335(13.2) 92(3.6)
JHJS-7 x 400 400(15.7) 113(4.4)
JHJS-7 x 450 450(17.7) 129(5.1)
JHJS-7 x 490 490(19.3) 141(5.6)
JHJS-7 x 550 550(21.7) 161(6.3)
JHJS-7 x 600 600(23.6) 176(6.9)
JHJS-7 x 650 650(25.6) 192(7.6)
JHJS-7 x 700 700(27.6) 208(8.2)
JHJS-7 x 750 750(29.5) 224(8.8)
JHJS-7 x 800 800(31.5) 240(9.4)
JHJS-12 x 150 150(5.9) 12(0.472) 0.4 33(1.3) 1800(405) 100
JHJS-12 x 225 225(8.86) 57(2.2)
JHJS-12 x 300 300(11.8) 81(3.2)
JHJS-12 x 335 335(13.2) 92(3.6)
JHJS-12 x 400 400(15.7) 113(4.4)
JHJS-12 x 450 450(17.7) 129(5.1)
JHJS-12 x 490 490(19.3) 141(5.6)
JHJS-12 x 550 550(21.7) 161(6.3)
JHJS-12 x 600 600(23.6) 176(6.9)
JHJS-12 x 650 650(25.6) 192(7.6)
JHJS-12 x 700 700(27.6) 208(8.2)
JHJS-12 x 750 750(29.5) 224(8.8)
JHJS-12 x 800 800(31.5) 240(9.4)
