Product Details:
Payment & Shipping Terms:
|
| Product Name: | Full Coated Self Locking Stainless Steel Ladder Zip Ties - UV Resistant | Color: | Black |
|---|---|---|---|
| Applications: | Telecommunication,Electricity,Shipbuilding,Oil&gas Industry | Sample: | Free Sample |
| Width: | 4.6mm,7mm And 12mm | Material: | Stainless Steel 316 |
| High Light: | ladder type stainless steel cable ties,metal reinforced zip ties |
||

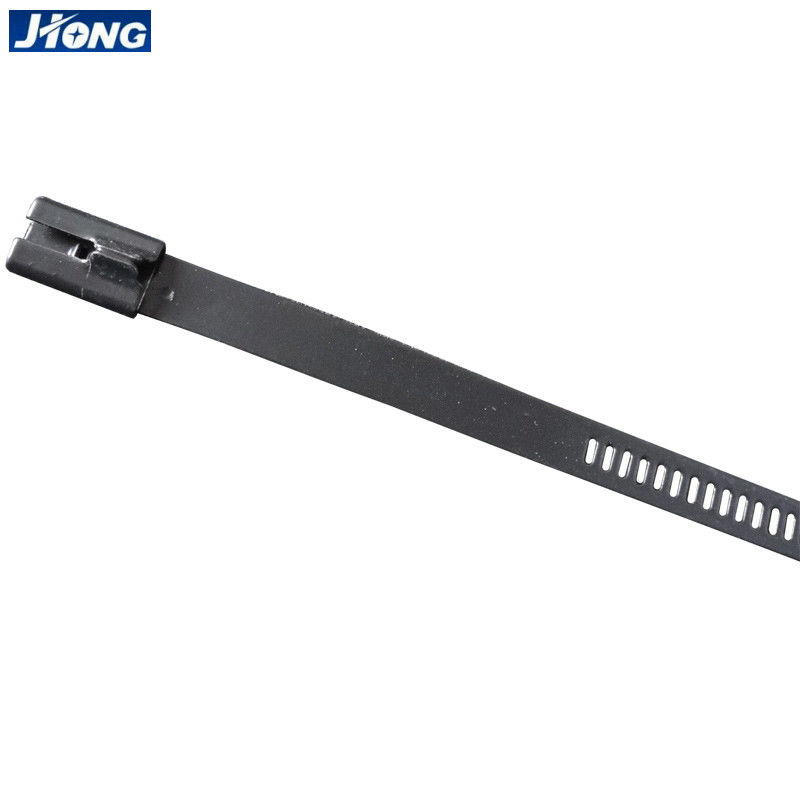

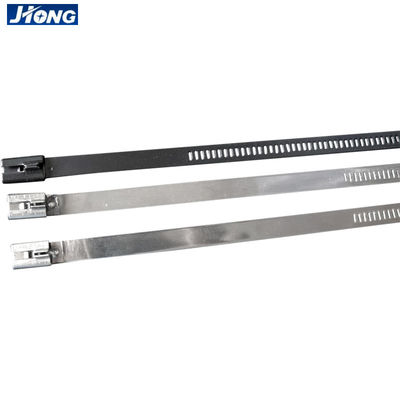

Full Coated Self Locking Stainless Steel Ladder Zip Ties - UV resistant
Description
1, Strong self-locking mechanism(Pawl and ratchet) saves time on installation.
2, Flat and low profile head(no sharp edge), for easy installation.
3, Larger slot at the end, allows the use of a hook-type tool.
4, Fully coated version with non-toxic, halogen free polyester coating.
5, Provides additional edge protection.
6, Prevent the corrosion between dissimilar materials.
Applications
Ideal for used in Petrochemical and food processing industries, power stations, mining, shipbuilding, offshore and other aggressive environments.
Product Features
1) Working Temp.: -80℃ to 150℃
2)Install easily and quickly
3)High tensile strength and no-flammability;
5) Provides additional edge protection.
6)Fire-proof and UV-resistant, Halogen free, non toxic
7)Prevent the corrosion between dissimilar materials.
8)PVC coating will reduce the cost, than PPA coating.
9)Softer and thicker PVC provide additional edge protection.
10)High resistance to acetic acid ,alkalic acid,sulphuric acid,anti-corrosion,etc;
11)Metallic buckle helps inspector to distinguish coated stainless steel tie from black nylon tie, when inspecting high above ground installation from ground.
| Part NO. | Approx.Length mm(inch) |
Approx.Width mm(inch) |
Thickness mm |
Max. bundle Dia. mm(inch) |
Min. loop tensile strength mm(inch) |
Pcs/bag |
| JHJS-7 x 150 | 150(5.9) | 7(0.276) | 0.4 | 33(1.3) | 1120(252) | 100 |
| JHJS-7 x 225 | 225(8.86) | 57(2.2) | ||||
| JHJS-7 x 300 | 300(11.8) | 81(3.2) | ||||
| JHJS-7 x 335 | 335(13.2) | 92(3.6) | ||||
| JHJS-7 x 400 | 400(15.7) | 113(4.4) | ||||
| JHJS-7 x 450 | 450(17.7) | 129(5.1) | ||||
| JHJS-7 x 490 | 490(19.3) | 141(5.6) | ||||
| JHJS-7 x 550 | 550(21.7) | 161(6.3) | ||||
| JHJS-7 x 600 | 600(23.6) | 176(6.9) | ||||
| JHJS-7 x 650 | 650(25.6) | 192(7.6) | ||||
| JHJS-7 x 700 | 700(27.6) | 208(8.2) | ||||
| JHJS-7 x 750 | 750(29.5) | 224(8.8) | ||||
| JHJS-7 x 800 | 800(31.5) | 240(9.4) | ||||
| JHJS-12 x 150 | 150(5.9) | 12(0.472) | 0.4 | 33(1.3) | 1800(405) | 100 |
| JHJS-12 x 225 | 225(8.86) | 57(2.2) | ||||
| JHJS-12 x 300 | 300(11.8) | 81(3.2) | ||||
| JHJS-12 x 335 | 335(13.2) | 92(3.6) | ||||
| JHJS-12 x 400 | 400(15.7) | 113(4.4) | ||||
| JHJS-12 x 450 | 450(17.7) | 129(5.1) | ||||
| JHJS-12 x 490 | 490(19.3) | 141(5.6) | ||||
| JHJS-12 x 550 | 550(21.7) | 161(6.3) | ||||
| JHJS-12 x 600 | 600(23.6) | 176(6.9) | ||||
| JHJS-12 x 650 | 650(25.6) | 192(7.6) | ||||
| JHJS-12 x 700 | 700(27.6) | 208(8.2) | ||||
| JHJS-12 x 750 | 750(29.5) | 224(8.8) | ||||
| JHJS-12 x 800 | 800(31.5) | 240(9.4) |
