Self Locking Stainless Steel Ladder Cable Ties With Flat And Low Profile Head

Certification
Good quality Coated Stainless Steel Cable Ties for sales
Good quality Coated Stainless Steel Cable Ties for sales
The quality of the cable ties are quite good, we want to continue working with you

—— Maarten

You always can give me the best plan ,and it lets my customer feel great,i hope we can have another chance to cooperation

—— Carence

Love the company and their products along with service.

—— Dinesh

I'm Online Chat Now

Self Locking Stainless Steel Ladder Cable Ties With Flat And Low Profile Head

China Self Locking Stainless Steel Ladder Cable Ties With Flat And Low Profile Head supplier
Self Locking Stainless Steel Ladder Cable Ties With Flat And Low Profile Head supplier Self Locking Stainless Steel Ladder Cable Ties With Flat And Low Profile Head supplier

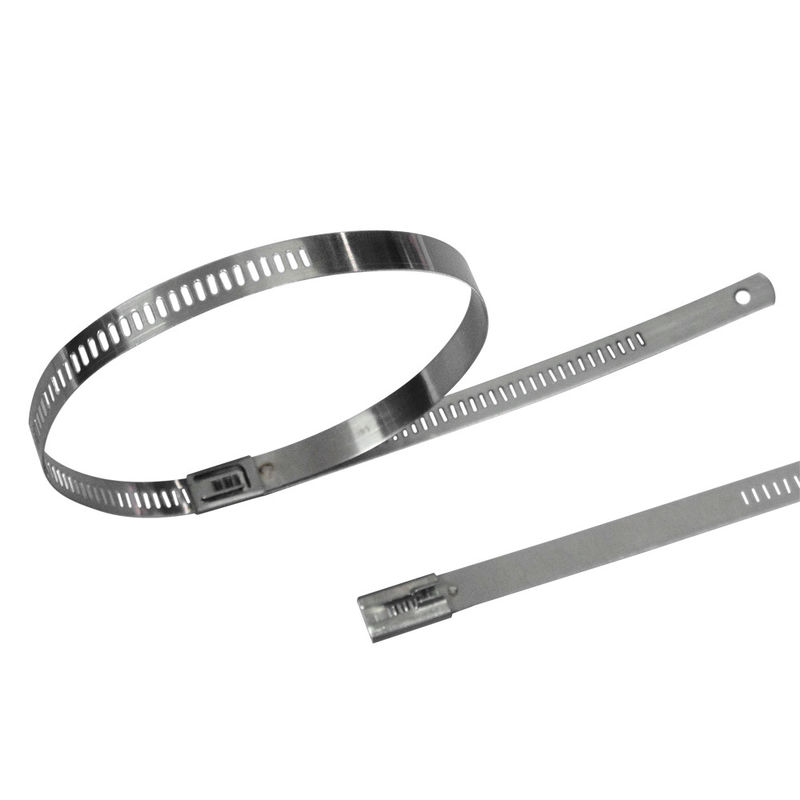

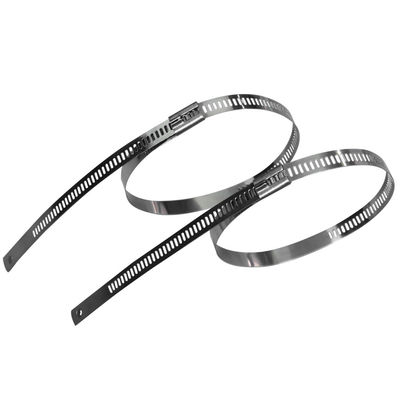

Large Image :  Self Locking Stainless Steel Ladder Cable Ties With Flat And Low Profile Head

Product Details:

Place of Origin: China
Brand Name: JIUHONG
Certification: UL,SGS,CE,ISO9001
Model Number: JHJD

Payment & Shipping Terms:

Minimum Order Quantity: 1000-10000pcs
Price: Negotiable
Packaging Details: 100pcs/polybag or 50pcs/polybag
Delivery Time: 2-7workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000000pcs/month
Contact Now
Detailed Product Description
Product Name: Self Locking SS 304 Stainless Steel Ladder Cable Ties With Flat And Low Profile Head Color: Natural
Applications: Telecommunication,Electricity,Shipbuilding,Oil&gas Industry Material: Stainless Steel
Width: 4.6mm,7mm And 12mm Type: Self Locking Ladder Ties
High Light:

ladder type stainless steel cable ties

,

metal reinforced zip ties

Self Locking SS 304 Stainless Steel Ladder Cable Ties With Flat and low profile head



Description


The Stainless Steel Ladder Cable Ties with Strong self-locking mechanism(Pawl and ratchet) and saves time on installation.The flat and low profile head(no sharp edge), for easy installation.Larger slot at the end, allows the use of a hook-type tool.Uncoated version for high temperature applications.


Applications


Ideal for used in Petrochemical and food processing industries, power stations, mining, shipbuilding, offshore and other aggressive environments.


Technical Inoformation


Material: Stainless Steel Grade 304 or 316


304 grade stainless steel, for standard applications.
316 grade stainless steel, for the most corrosive environments.


Working Temp.: -80℃ to 538℃
Description: Entirely Metallic
Flammability: Fireproof
Other Properties: UV-resistant.



Self Locking Stainless Steel Ladder Cable Ties With Flat And Low Profile Head



Part No. Approx.Length
mm(inch)
Approx.Width
mm(inch)
Thickness
mm
Max. bundle Dia.
mm(inch)
Min. loop
tensile strength
mm(inch)
Pcs/bag
JHJD-7 x 150 150(5.9) 7(0.276) 0.25 33(1.3) 1120(252) 100
JHJD-7 x 225 225(8.86) 57(2.2)
JHJD-7 x 300 300(11.8) 81(3.2)
JHJD-7 x 335 335(13.2) 92(3.6)
JHJD-7 x 400 400(15.7) 113(4.4)
JHJD-7 x 450 450(17.7) 129(5.1)
JHJD-7 x 490 490(19.3) 141(5.6)
JHJD-7 x 550 550(21.7) 161(6.3)
JHJD-7 x 600 600(23.6) 176(6.9)
JHJD-7 x 650 650(25.6) 192(7.6)
JHJD-7 x 700 700(27.6) 208(8.2)
JHJD-7 x 750 750(29.5) 224(8.8)
JHJD-7 x 800 800(31.5) 240(9.4)
JHJD-12 x 150 150(5.9) 12(0.472) 0.25 33(1.3) 1800(405) 100
JHJD-12 x 225 225(8.86) 57(2.2)
JHJD-12 x 300 300(11.8) 81(3.2)
JHJD-12 x 335 335(13.2) 92(3.6)
JHJD-12 x 400 400(15.7) 113(4.4)
JHJD-12 x 450 450(17.7) 129(5.1)
JHJD-12 x 490 490(19.3) 141(5.6)
JHJD-12 x 550 550(21.7) 161(6.3)
JHJD-12 x 600 600(23.6) 176(6.9)
JHJD-12 x 650 650(25.6) 192(7.6)
JHJD-12 x 700 700(27.6) 208(8.2)
JHJD-12 x 750 750(29.5) 224(8.8)
JHJD-12 x 800 800(31.5) 240(9.4)
