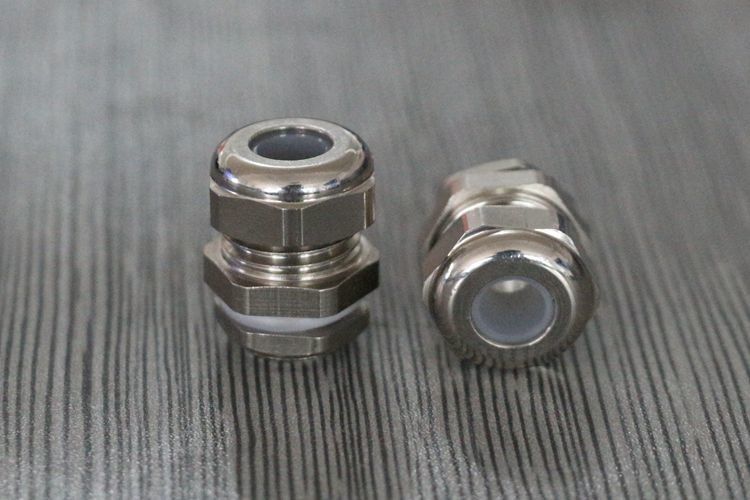

Nickel Plated Electric Brass Waterproof Cable Gland With Rubber Seal Ul Approved

China Nickel Plated Electric Brass Waterproof Cable Gland With Rubber Seal Ul Approved supplier
Nickel Plated Electric Brass Waterproof Cable Gland With Rubber Seal Ul Approved supplier Nickel Plated Electric Brass Waterproof Cable Gland With Rubber Seal Ul Approved supplier

Large Image :  Nickel Plated Electric Brass Waterproof Cable Gland With Rubber Seal Ul Approved

Product Details:

Place of Origin: China
Brand Name: JIUHONG
Certification: CE,SGS,ISO9001
Model Number: PG

Payment & Shipping Terms:

Minimum Order Quantity: 1000-10000pcs
Price: Negotiable
Packaging Details: 50pcs/bag or 100pcs/bag
Delivery Time: 3-7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000pcs/month
Contact Now
Detailed Product Description
Product Name: Nickel Plated Electric Brass Waterproof Cable Gland With Rubber Seal Color: Nickle Plated
Size: PG9 Sample: Free
Waterproof: IP68 OEM/ODM: Accept
High Light:

ip68 cable gland

,

pg cable glands

nickel plated electric brass waterproof cable gland with rubber seal



Product Features



1. Thread:PG G METRIC AND NPT thread.

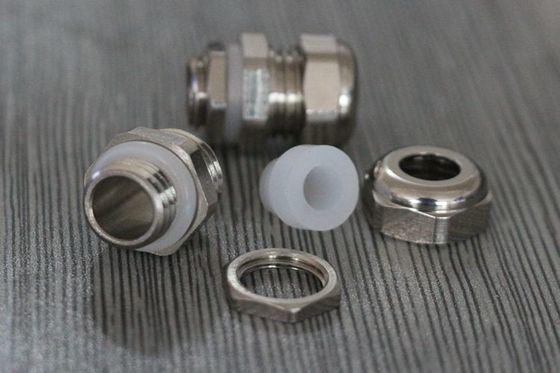

2. Brass with nickel plated for A.C.F parts,Ul approved Nylon PA66(Flammablity Ul 94v-2) for E parts,

EPDM rubber for B. D parts(Accept to make super rubber:resist high temperature rubber,resist strong acid/alkali etc)



3. Protection degree:IP68,Working Temperature:-40c ~ 120c



Thread Spec. Cable Range
(mm)
GL
(mm)
Wrench Size
(mm)
Thread Spec. Cable Range
(mm)
GL
(mm)
Wrench Size
(mm)
M standard M8*1.25 3-4.5 5.5 11 PG standard PG7 3-7 6 14
M8*1 3-7 6 14 PG9 4-8 7 17
M10*1 3-7 6 14 PG11 6-10 7 20
M12*1.5 3-7 6 14 PG13.5 8-12 8 22
M14*1.5 3-7 6 14/16 PG16 10-14 8 24
M16*1.5 4-8 7 17/18 PG19 10-14 8 24/27
M18*1.5 6-10 7 20 PG21 13-18 8 30
M20*1.5 8-12 8 22 PG25 15-22 9 34
M22*1.5 10-14 8 24 PG29 18-25 9 40
M24*1.5 10-14 8 24/27 PG36 25-32 10 50
M25*1.5 10-14 8 24/27 PG42 32-38 10 58
M27*1.5(2) 13-18 8 30 PG48 37-44 12 64
M30*1.5(2) 13-18 8 28/34 PG63 42-52 15 76/78
M32*1.5(2) 15-22 9 34
M33*1.5(2) 15-22 9 34/36 PG
Non-standard
PG9 6-10 7 20
M36*1.5(2) 18-25 9 40 PG13.5-F 4-8 8 22
M37*1.5(2) 18-25 9 40 PG13.5-H 6-10 7 20/22
M40*1.5(2) 22-28 10 43 PG13.5-D 10-14 8 24
M42*1.5(2) 22-28 10 43/45 PG16-H 8-12 8 24
M48*1.5(2) 25-32 10 50/52 PG21-H 10-16 8 28/30
M50*1.5(2) 25-32 10 50/55 PG36-F 18-25 10 50
M54*1.5(2) 32-38 12 58
M56*1.5(2) 32-38 12 58 G G1/4" 3-7 6 14
M60*1.5(2) 37-44 12 64 G3/8" 4-8 7 17/18
M63*1.5(2) 37-44 12 64/68 G1/2" 8-12 8 22
M64*1.5(2) 37-44 12 64/68 G3/4" 13-18 8 30
M72*1.5(2) 42-52 15 76/78 G1" 15-22 9 34/36
M75*1.5(2) 42-52 15 76/78 G1-1/4" 22-28 10 43/45
M76*1.5(2) 42-52 15 76/78 G1-1/4" 22-30 10 43/45
M80*1.5(2) 50-62 16 86/88 G1-1/2" 25-32 10 50/52
M85*1.5(2) 50-62 16 86/88 G2" 37-44 12 64
M85*1.5(2) 60-70 18 98 G2-1/2" 42-52 15 76/78
M88*1.5(2) 60-70 18 98 G3" 65-70 18 98
M90*1.5(2) 60-70 18 98 NPT NPT1/4" 3-7 6 14
M100*1.5(2) 70-80 20 110 NPT3/8" 4-8 7 18
M
Non-standard
M16*1.5-D 6-10 7 20 NPT1/2" 8-12 8 22
M20*1.5-F 4-8 7 22 NPT3/4" 13-18 8 30
M20*1.5-H 6-10 7 20/22 NPT1" 15-22 9 36
M20*1.5-D 10-14 7 24 NPT1-1/4" 22-28 10 45
M22*1.5-H 8-12 8 22/24 NPT1-1/4" 22-30 10 45
M25*1.5-H 9-16 8 24/28 NPT1-1/2" 25-32 10 50
M25*1.5-D 13-18 8 30 NPT2" 37-44 12 64
M27*1.5(2)-H 10-16 8 28/30 NPT2-1/2" 42-52 15 78
M30*1.5(2)-H 10-16 8 28/34 NPT3" 60-70 18 98
M30*1.5(2)-D 15-20 8 34
M32*1.5(2)-H 13-18 8 30/34
M32*1.5(2)-D 18-25 9 40
M36*1.5(2)-H 15-22 9 34/40
M40*1.5(2)-H 18-25 9 40/43
M40*1.5(2)-D 22-30 10 45
M40*1.5(2)-D 22-32 10 50
M42*1.5(2)-D 22-30 10 45
M50*1.5(2)-D 32-38 12 58
M63*1.5(2)-D 42-53 15 76/78
