Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Product Name: | Stainless Steel Insulation Banding Or Strapping For Fast Installer |
|---|---|---|---|
| Color: | Silver | Length: | 200mm--3000mm |
| MOQ: | 5000pcs | ||
| High Light: | insulation straps,insulation strapping band |
||

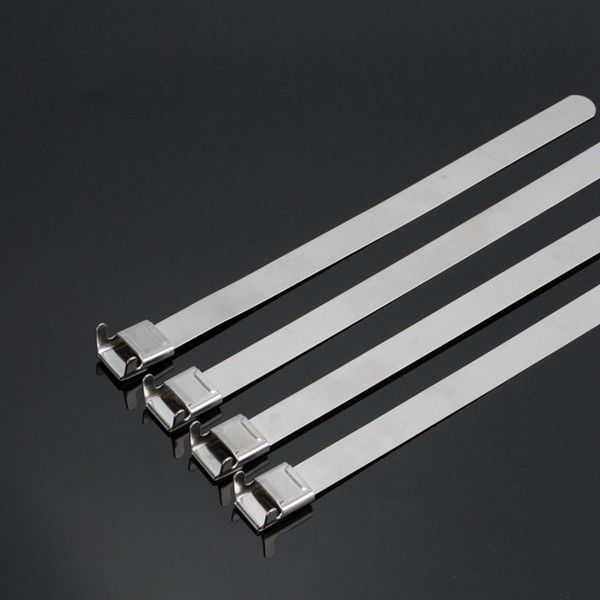

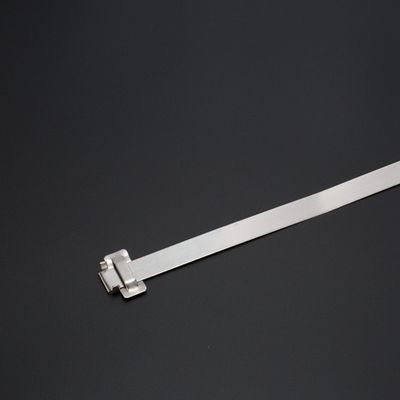

Stainless Steel Insulation Banding or Strapping for Fast Installer
Insulation Stainless Steel Band is need for the purpose of tying down the Insulation jacket around pipes.
The existing bands are hand made from a roll of Stainless Steel band. A required length is cut and clip is manually attatched to this band.This manual process is time consuming and ""prone to fail at the clip joint when tension in applied.Easy Band, on the other hand, elimimaters all these problems, since the clip is machanically attached to the band. You simply choose the right length and apply it on site.As a result of our patented desin, on site application is simple, fast, and economical.-Major customors: Petrochemical Plants, Power Plants, Refinaries, L& Gas Plants, Ship Building Industries, Smelter.
| Part No. | Approx. Length mm(inch) |
Approx. width mm(inch) |
Thickness | Max,bundle dia.mm(inch) |
Min,loop tensile strength N(lbs) |
Pcs/bag |
| JHLN-12 x 200 | 200(7.87) | 12(0.47) | 0.3-0.5 | 50(1.97) | 1200(270) | 100 |
| JHLN-12 x 250 | 250(9.84) | 0.3-0.5 | 63(2.48) | 100 | ||
| JHLN-12 x 300 | 300(11.8) | 0.3-0.5 | 76(2.99) | 100 | ||
| JHLN-12 x 350 | 350(13.78) | 0.3-0.5 | 89(3.5) | 100 | ||
| JHLN-12 x 400 | 400(15.75) | 0.3-0.5 | 102(4.02) | 100 | ||
| JHLN-12 x 450 | 450(17.72) | 0.3-0.5 | 115(4.53) | 100 | ||
| JHLN-12 x 500 | 500(19.69) | 0.3-0.5 | 128(5.04) | 100 | ||
| JHLN-12 x 550 | 550(21.65) | 0.3-0.5 | 141(5.55) | 100 | ||
| JHLN-15 x 250 | 250(9.84) | 15(0.59) | 0.3-0.5 | 63(2.48) | 1500(337) | 100 |
| JHLN-15 x 300 | 300(11.8) | 0.3-0.5 | 76(2.99) | 100 | ||
| JHLN-15 x 350 | 350(13.78) | 0.3-0.5 | 89(3.5) | 100 | ||
| JHLN-15 x 400 | 400(15.75) | 0.3-0.5 | 102(4.02) | 100 | ||
| JHLN-15 x 450 | 450(17.72) | 0.3-0.5 | 115(4.53) | 100 | ||
| JHLN-15 x 500 | 500(19.69) | 0.3-0.5 | 128(5.04) | 100 | ||
| JHLN-15 x 600 | 600(23.62) | 0.3-0.5 | 154(6.06) | 100 | ||
| JHLN-15 x 700 | 700(27.56) | 0.3-0.5 | 180(7.09) | 100 | ||
| JHLN-15 x 750 | 750(29.53) | 0.3-0.5 | `191(7.52) | 100 | ||
| JHLN-15 x 800 | 800(31.5) | 0.3-0.5 | 193(7.59) | 100 | ||
| JHLN-15 x 1000 | 1000(39.37) | 0.3-0.5 | 206(8.11) | 100 | ||
| JHLN-19 x 300 | 300(11.8) | 19(0.75) | 0.4-0.76 | 76(2.99) | 2000(440) | 100 |
| JHLN-19 x 400 | 400(15.75) | 0.4-0.76 | 102(4.02) | 100 | ||
| JHLN-19 x 500 | 500(19.69) | 0.4-0.76 | 141(5.55) | 100 | ||
| JHLN-19 x 600 | 600(23.62) | 0.4-0.76 | 154(6.06) | 100 | ||
| JHLN-19 x 700 | 700(27.56) | 0.4-0.76 | 180(7.09) | 100 | ||
| JHLN-19 x 800 | 800(31.5) | 0.4-0.76 | 193(7.59) | 100 | ||
| JHLN-19 x 900 | 900(36) | 0.4-0.76 | 200(8) | 100 | ||
| JHLN-19 x 1000 | 1000(39.37) | 0.4-0.76 | 206(8.11) | 100 |
