Product Details:
Payment & Shipping Terms:
|
| Product Name: | 304 316 Fire-proof Self-lock Stainless Steel Cable Ties With 7.9mm Width | Color: | Naked |
|---|---|---|---|
| Length: | All Length Are Avaliable | Applications: | Shipbuilding Industry,Oil Pipeline,Power Industry,communications |
| Product Material: | Stainless Steel | Width: | 7.9mm |
| Flammability: | Fireproof | Material: | 304,316,201 |
| MOQ: | 1000pcs | Type: | Self-locking |
| Pack: | 100pcs/bag | ||
| High Light: | metal cable ties,stainless steel tie wraps |
||

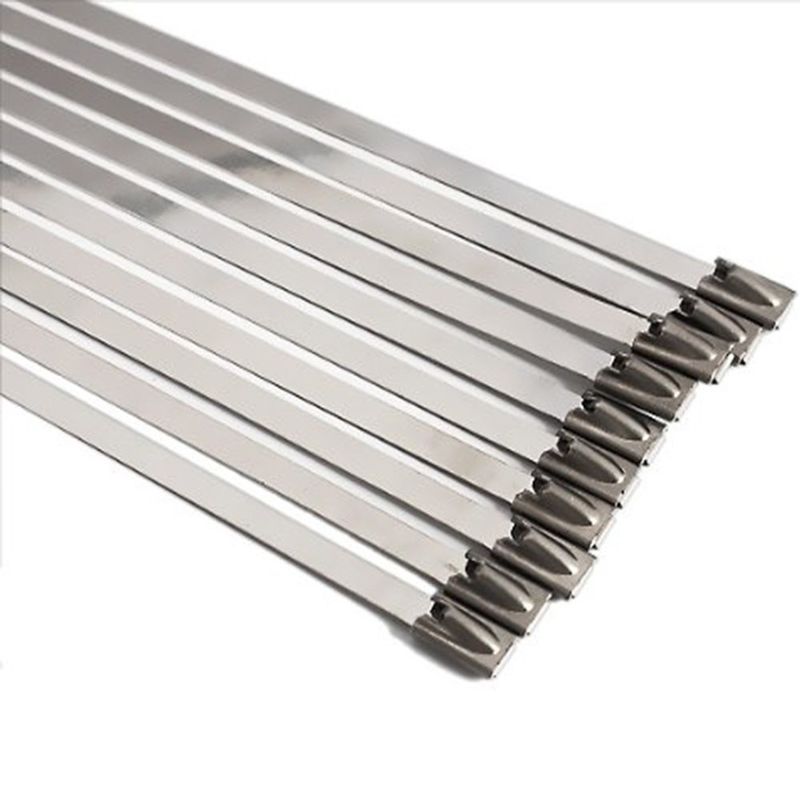

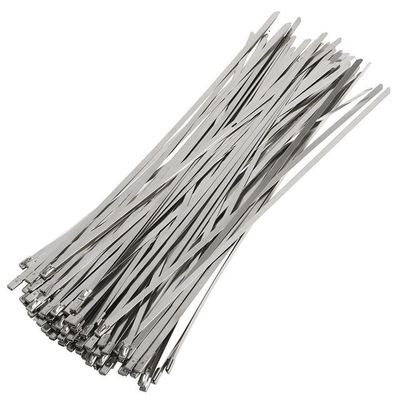

Easy Installed 304 316 Stainless Steel Cable Tie with Ball Bearing Mechanism
Description
. Four widths-0.18 (4.6mm), 0.31 (7.9mm), 0.47 (12mm) and 0.59 (15mm) for applications ranging
from identification tagging to bundle large cables.
2. Self locking design allows fast installation.
3. Installation by hand or with tools to assure uniform tension and clean tail cut-off for safe handing-
Available in type 304 and type 316 stainless steel to provide good to excellent corrosion resistance in
wide variety of environments.
4. Coated ball lock ties are fully coated with black epoxy normal. It also can be done in colorful type.
Application
Stainless steel cable ties are a quick effective way of securing cables.Utilized in general use banding application They can be used in virtually petrochemical, traffic signal facilities, oil and gas transmission, telecommunication, power station, mining, car/plane/ship-building, offshore and any other aggressive environments,etc.
How to Use
Corrosion resistance is ideal for harsh marine environments. It's used in cable management
applications to reduce the risk of cutting or abrading cable.

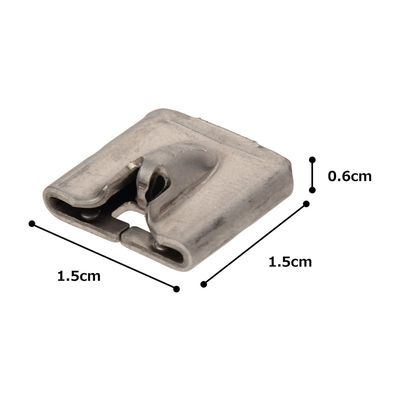

As the stainless steel band is inserted into the buckle, the internal locking ball rolls freely. During
tensioning, the band wedges into the buckle locking ti tightly between the buckle and the band.
| Part No. | Approx. length. mm(inch) |
Approx. width mm(inch) |
Thickness mm |
Max. Bundle Dia. mm(inch) |
Min.loop tensile strength N(lbs) |
Pcs/Bag |
| JHCN-4.6 x 150 | 150(5.9) | 4.6(0.181) | 0.25 | 37(1.46) | 600(135) | 100 |
| JHCN-4.6 x 200 | 200(7.87) | 50(1.97) | ||||
| JHCN-4.6 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCN-4.6 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCN-4.6 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCN-4.6 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCN-4.6 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCN-4.6 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCN-4.6 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCN-4.6 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCN-7.9 x 150 | 150(5.9) | 7.9(0.311) | 0.25 | 37(1.46) | 800(180) | 100 |
| JHCN-7.9 x 200 | 200(7.87) | 50(1.97) | ||||
| JHCN-7.9 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCN-7.9 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCN-7.9 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCN-7.9 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCN-7.9 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCN-7.9 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCN-7.9 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCN-7.9 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCN-7.9 x 650 | 650(25.59) | 167(6.57) | ||||
| JHCN-7.9 x 700 | 700(27.56) | 180(7.09) | ||||
| JHCN-7.9 x 750 | 750(29.53) | 191(7.52) | ||||
| JHCN-7.9 x 800 | 800(31.5) | 193(7.59) | ||||
| JHCN-12 x 150 | 150(5.9) | 12(0.472) | 0.25 | 37(1.46) | 1200(270) | 100 |
| JHCN-12 x 200 | 200(7.87) | 50(1.97) | ||||
| JHCN-12 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCN-12 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCN-12 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCN-12 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCN-12 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCN-12 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCN-12 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCN-12 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCN-12 x 650 | 650(25.59) | 167(6.57) | ||||
| JHCN-12 x 700 | 700(27.56) | 180(7.09) | ||||
| JHCN-15 x 200 | 200(7.87) | 15(0.59) | 0.4 | 50(1.97) | 1500(337) | 100 |
| JHCN-15 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCN-15 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCN-15 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCN-15 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCN-15 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCN-15 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCN-15 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCN-15 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCN-15 x 650 | 650(25.59) | 167(6.57) | ||||
| JHCN-15 x 700 | 700(27.56) | 180(7.09) | ||||
| JHCN-15 x 750 | 750(29.53) | 191(7.52) | ||||
| JHCN-15 x 800 | 800(31.5) | 193(7.59) | ||||
| JHCN-15 x 1000 | 1000(39.37) | 206(8.11) |
