Product Details:
Payment & Shipping Terms:
|
| Product Name: | SS304 Naked Stainless Steel Ladder Cable Ties -single Barb Lock Type | Color: | Black |
|---|---|---|---|
| Applications: | Telecommunication,Electricity,Shipbuilding,Oil&gas Industry | Sample: | Free Sample |
| Width: | 7mm And 12mm | Material: | Stainless Steel |
| High Light: | ladder type stainless steel cable ties,metal reinforced zip ties |
||

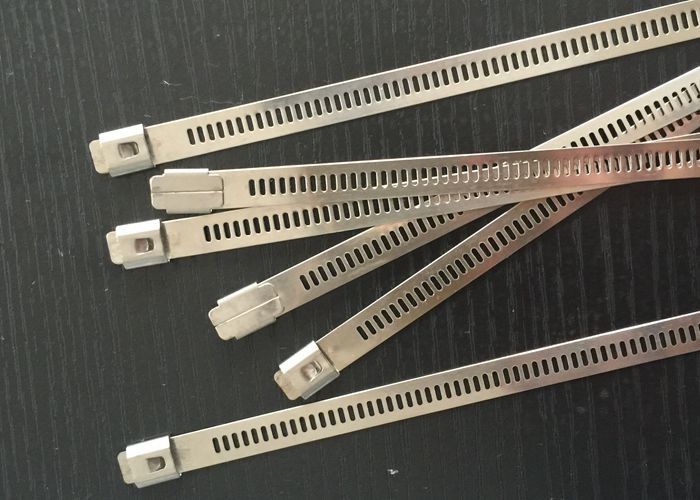

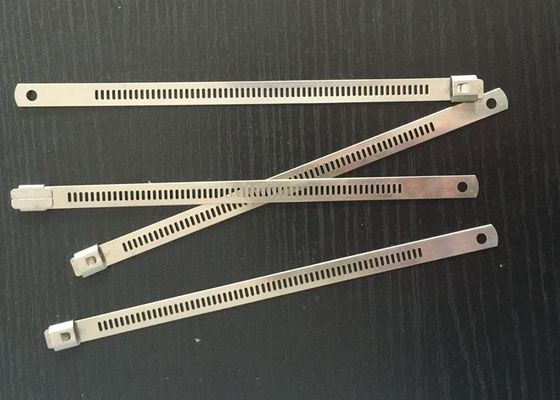

SS304 Naked Stainless Steel Ladder Cable Ties -single Barb Lock Type
Description
Strong self-locking mechanism(Pawl and ratchet) saves time on installation.
Flat and low profile head(no sharp edge), for easy installation.
Larger slot at the end, allows the use of a hook-type tool.
Uncoated version for high temperature applications.
Applications
Ideal for used in Petrochemical and food processing industries, power stations, mining, shipbuilding, offshore and other aggressive environments.
Technical Inoformation
Material: Stainless Steel Grade 304 or 316
304 grade stainless steel, for standard applications
316 grade stainless steel, for the most corrosive environments
Working Temp.: -80℃ to 538℃
Description: Entirely Metallic
Flammability: Fireproof
Other Properties: UV-resistant.
| Part No. | Approx.Length mm(inch) |
Approx.Width mm(inch) |
Thickness mm |
Max. bundle Dia. mm(inch) |
Min. loop tensile strength mm(inch) |
Pcs/bag |
| JHJL-7 x 150 | 150(5.9) | 7(0.276) | 0.25 | 33(1.3) | 1120(252) | 100 |
| JHJL-7 x 225 | 225(8.86) | 57(2.2) | ||||
| JHJL-7 x 300 | 300(11.8) | 81(3.2) | ||||
| JHJL-7 x 335 | 335(13.2) | 92(3.6) | ||||
| JHJL-7 x 400 | 400(15.7) | 113(4.4) | ||||
| JHJL-7 x 450 | 450(17.7) | 129(5.1) | ||||
| JHJL-7 x 490 | 490(19.3) | 141(5.6) | ||||
| JHJL-7 x 550 | 550(21.7) | 161(6.3) | ||||
| JHJL-7 x 600 | 600(23.6) | 176(6.9) | ||||
| JHJL-7 x 650 | 650(25.6) | 192(7.6) | ||||
| JHJL-7 x 700 | 700(27.6) | 208(8.2) | ||||
| JHJL-7 x 750 | 750(29.5) | 224(8.8) | ||||
| JHJL-7 x 800 | 800(31.5) | 240(9.4) | ||||
| JHJL-12 x 150 | 150(5.9) | 12(0.472) | 0.25 | 33(1.3) | 1800(405) | 100 |
| JHJL-12 x 225 | 225(8.86) | 57(2.2) | ||||
| JHJL-12 x 300 | 300(11.8) | 81(3.2) | ||||
| JHJL-12 x 335 | 335(13.2) | 92(3.6) | ||||
| JHJL-12 x 400 | 400(15.7) | 113(4.4) | ||||
| JHJL-12 x 450 | 450(17.7) | 129(5.1) | ||||
| JHJL-12 x 490 | 490(19.3) | 141(5.6) | ||||
| JHJL-12 x 550 | 550(21.7) | 161(6.3) | ||||
| JHJL-12 x 600 | 600(23.6) | 176(6.9) | ||||
| JHJL-12 x 650 | 650(25.6) | 192(7.6) | ||||
| JHJL-12 x 700 | 700(27.6) | 208(8.2) | ||||
| JHJL-12 x 750 | 750(29.5) | 224(8.8) | ||||
| JHJL-12 x 800 | 800(31.5) | 240(9.4) |
