Product Details:
Payment & Shipping Terms:
|
| Product Name: | Black Color Single Barb Lock Stainless Steel Ladder Zip Ties | Color: | Black |
|---|---|---|---|
| Applications: | Telecommunication,Electricity,Shipbuilding,Oil&gas Industry | Sample: | Free Sample |
| Width: | 4.6mm,7mm And 12mm | Material: | Stainless Steel 201,304,316 |
| High Light: | ss cable ties,metal reinforced zip ties |
||

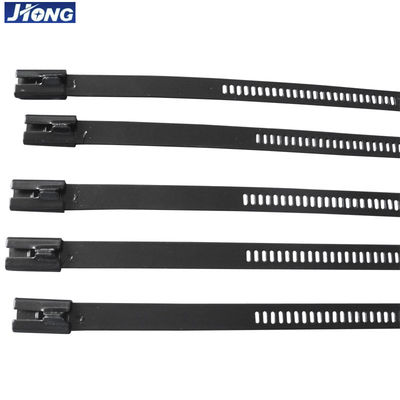

Black Color Single Barb Lock Stainless Steel Ladder Zip Ties For use in Oil and gas industry
Description
1, Strong self-locking mechanism(Pawl and ratchet) saves time on installation.
2, Flat and low profile head(no sharp edge), for easy installation.
3, Larger slot at the end, allows the use of a hook-type tool.
4, Fully coated version with non-toxic, halogen free polyester coating.
5, Provides additional edge protection.
6, Prevent the corrosion between dissimilar materials.
Applications
Ideal for used in Petrochemical and food processing industries, power stations, mining, shipbuilding, offshore and other aggressive environments.
Technical Inoformation
Material: Stainless Steel Grade 304 or 316
304 grade stainless steel, for standard applications.
316 grade stainless steel, for the most corrosive environments.
Working Temp.: -80℃ to 150℃
Color : Entirely Black
Flammability: Fireproof
Other Properties: UV-resistant, Halogen Free, Non-toxic;
| Part NO. | Approx.Length mm(inch) |
Approx.Width mm(inch) |
Thickness mm |
Max. bundle Dia. mm(inch) |
Min. loop tensile strength mm(inch) |
Pcs/bag |
| JHJS-7 x 150 | 150(5.9) | 7(0.276) | 0.4 | 33(1.3) | 1120(252) | 100 |
| JHJS-7 x 225 | 225(8.86) | 57(2.2) | ||||
| JHJS-7 x 300 | 300(11.8) | 81(3.2) | ||||
| JHJS-7 x 335 | 335(13.2) | 92(3.6) | ||||
| JHJS-7 x 400 | 400(15.7) | 113(4.4) | ||||
| JHJS-7 x 450 | 450(17.7) | 129(5.1) | ||||
| JHJS-7 x 490 | 490(19.3) | 141(5.6) | ||||
| JHJS-7 x 550 | 550(21.7) | 161(6.3) | ||||
| JHJS-7 x 600 | 600(23.6) | 176(6.9) | ||||
| JHJS-7 x 650 | 650(25.6) | 192(7.6) | ||||
| JHJS-7 x 700 | 700(27.6) | 208(8.2) | ||||
| JHJS-7 x 750 | 750(29.5) | 224(8.8) | ||||
| JHJS-7 x 800 | 800(31.5) | 240(9.4) | ||||
| JHJS-12 x 150 | 150(5.9) | 12(0.472) | 0.4 | 33(1.3) | 1800(405) | 100 |
| JHJS-12 x 225 | 225(8.86) | 57(2.2) | ||||
| JHJS-12 x 300 | 300(11.8) | 81(3.2) | ||||
| JHJS-12 x 335 | 335(13.2) | 92(3.6) | ||||
| JHJS-12 x 400 | 400(15.7) | 113(4.4) | ||||
| JHJS-12 x 450 | 450(17.7) | 129(5.1) | ||||
| JHJS-12 x 490 | 490(19.3) | 141(5.6) | ||||
| JHJS-12 x 550 | 550(21.7) | 161(6.3) | ||||
| JHJS-12 x 600 | 600(23.6) | 176(6.9) | ||||
| JHJS-12 x 650 | 650(25.6) | 192(7.6) | ||||
| JHJS-12 x 700 | 700(27.6) | 208(8.2) | ||||
| JHJS-12 x 750 | 750(29.5) | 224(8.8) | ||||
| JHJS-12 x 800 | 800(31.5) | 240(9.4) |
