Explosion Proof Waterproof Cable Gland / M25 Cable Gland Corrosion Resistance

China Explosion Proof Waterproof Cable Gland / M25 Cable Gland Corrosion Resistance supplier
Explosion Proof Waterproof Cable Gland / M25 Cable Gland Corrosion Resistance supplier Explosion Proof Waterproof Cable Gland / M25 Cable Gland Corrosion Resistance supplier

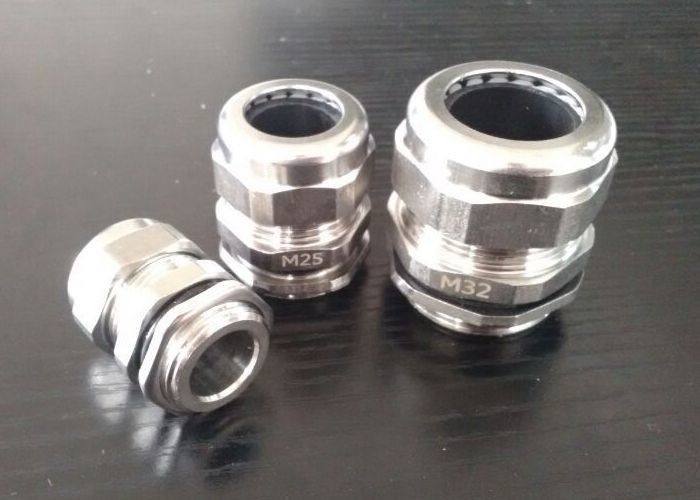

Large Image :  Explosion Proof Waterproof Cable Gland / M25 Cable Gland Corrosion Resistance

Product Details:

Place of Origin: China
Brand Name: JIUHONG
Certification: CE,SGS,ISO9001
Model Number: Metrical

Payment & Shipping Terms:

Minimum Order Quantity: 1000-10000pcs
Price: Negotiable
Packaging Details: 50pcs/polybag
Delivery Time: 3-7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000pcs/month
Contact Now
Detailed Product Description
Features: Waterproof And Dustproof Product Name: SS 304 Stainless Steel Waterproof Cable Gland - M25 Connector
Material: Stainless Steel Color: Natural
Size: M25 Operating Temperature: Static Condition: -40℃ To 100℃, Short-time120℃.
High Light:

stainless steel cable gland

,

ip68 cable gland

SS 304 Stainless Steel Waterproof Cable Gland - M25 Connector



Description



Material: Body:SUS304/SUS316 ,Seal:Polyamide ,


Sealing:Modified rubber


Protection degree: Within the clamping range,and the use of O
sealing ring screw tight head ,its protection degree can reach IP68.


Operating temperature: Static condition: -40℃ to 100℃, short-time120℃.


Product Characteristics:special design of the clamp and seals, extremely easy installation, suit for wide range of cable, strong stretching resistance, waterproof, dust proof, resist to salt, acid, alcohol, grease and other solvent.


Applications:Waterproof cable connector cable accessory
products,joint can access equipment box,can also according to the electric equipment selection of thread access import and export for internal thread.

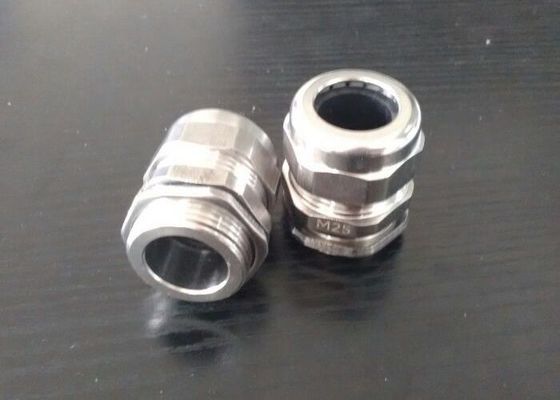

Explosion Proof Waterproof Cable Gland / M25 Cable Gland Corrosion Resistance



ITEM.NO. Cable diameter
(mm)
Thread diameter
(mm)
Thread length GL
(mm)
Spanner size
(mm)
Thread pitch
(mm)
Package
(pcs)
PG7 3--6.5 12.5 6 14 1.5 50
PG9 4--8 15.2 7 17
PG11 5--10 18.6 7 20
PG13.5 6--12 20.4 7 22
PG16 8--14 22.5 7 24
PG21 13--18 28.3 7 28/30 25
PG29 18--25 37 8 40 20
PG36 22--32 47 9 50 10
PG42 30--38 54 10 58
PG48 37--44 59.3 10 65 5
PG63 42--53 72 10 77


ITEM.NO. Cable diameter
(mm)
Thread diameter
(mm)
Thread length GL
(mm)
Spanner size
(mm)
Thread pitch
(mm)
Package
(pcs)
M10 3--6.5 10 6 14 1 50
M12S 3--6.5 12 6 14 1.5
M12M 4--7 12 6 15/15 1.5
M12L 4--8 12 7 15/19 1.5
M14S 3--6 14 7 19/15 1.5
M14M 4--8 14 7 19/19 1.5
M16S 3.5--8 16 8 19/19 1.5
M16M 4--9 16 8 19/19 1.5
M16L 5--10 16 8 19/20 1.5
M18 4.5--10 18 8 20/20 1.5
M20S 6.5-12 20 8 23/23 1.5
M20M 9--14 20 9 22/25 1.5 25
M22 9.8--14 22 9 25/25 1.5
M24 9.8--14 24 10 28/28 1.5
M25S 11.8-16 25 10 28/28 1.5
M25M 13-18 25 11 28/30 1.5
M27 10--18 27 11 30/30 2
M30 14--20 30 11 36/36 2 10
M32S 17-22 32 11 36/36 1.5
M32M 18-25 32 12 41/41
M33 15-22 33 11 36/36 2
M36 18-25 36 12 41/41 2
M40S 22-28 40 12 45/45 1.5
M40M 24-30 40 12 45/45
M42 24-30 42 12 45/45 2 5
M48 25-32 48 13 52/52 2
M50 28-26 50 13 54/54 1.5
M54 30-38 54 14 58/58 2
M60 36-44 60 15 70/70
M63 36-44 63 15 70/70 1.5
M64 36-44 64 15 70/70 2
