Product Details:
Payment & Shipping Terms:
|
| Product Name: | Coated Stainless Steel Cable Ties | Material: | Stainless Steel With Polyester |
|---|---|---|---|
| Application: | Shipbuilding Industry,Oil Pipeline,Power Industry,Communications | Sampe: | Free |
| Width: | 3.7mm To 20mm | Color: | Black,Blue,Yellow,Red,Green Etc |
| High Light: | pvc coated stainless steel cable ties,plastic coated stainless steel cable ties |
||

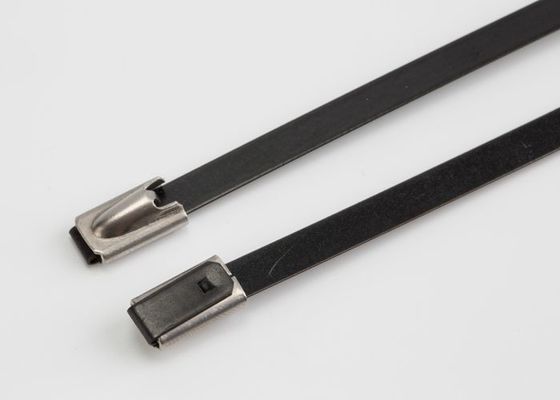

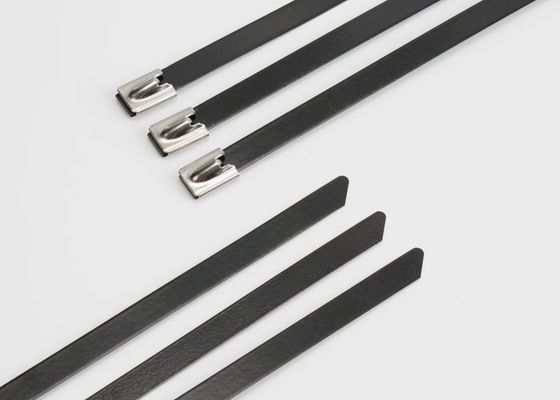

Polyester Coated Self Locking Type Stainless Steel Cable Ties Ball Lock Stainless Steel Tie
Product Feature
Coated Stainless Steel Cable Ties are designed to secure several electronic cables or wires together cables onto PV system. The cable ties are available in corrosion resistant stainless steel suitable for rigorous corrosive conditions, which provides a strong durable method of cable bundling.
The Coated Stainless Steel Cable Ties have unique self-locking mechanism allows easy and quick operation. Full or partial PVC coated tie provides superior insulation and protection of cable.
Technical Information
Material: Stainless Steel Grade 201,304 or 316
Working Temp.: -80℃ to 150℃
Description: Black(or blue,red,yellow,green) Band with Metallic Buckle
Flammability: Fireproof
Other Properties: UV-resistant, non toxic
| Part No. | Approx. length. mm(inch) |
Approx. width mm(inch) |
Thickness mm |
Max. Bundle Dia. mm(inch) |
Min.loop tensile strength N(lbs) |
Pcs/Bag |
| JHCP-4.6 x 150 | 150(5.9) | 4.6(0.181) | 0.4 | 37(1.46) | 600(135) | 100 |
| JHCP-4.6 x 200 | 200(7.87) | 50(1.97) | ||||
| JHCP-4.6 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCP-4.6 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCP-4.6 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCP-4.6 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCP-4.6 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCP-4.6 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCP-4.6 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCP-4.6 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCP-7.9 x 150 | 150(5.9) | 7.9(0.311) | 0.4 | 37(1.46) | 800(180) | 100 |
| JHCP-7.9 x 200 | 200(7.87) | 50(1.97) | ||||
| JHCP-7.9 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCP-7.9 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCP-7.9 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCP-7.9 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCP-7.9 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCP-7.9 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCP-7.9 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCP-7.9 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCP-7.9 x 650 | 650(25.59) | 167(6.57) | ||||
| JHCP-7.9 x 700 | 700(27.56) | 180(7.09) | ||||
| JHCP-7.9 x 750 | 750(29.53) | 191(7.52) | ||||
| JHCP-7.9 x 800 | 800(31.5) | 193(7.59) | ||||
| JHCP-12 x 150 | 150(5.9) | 12(0.472) | 0.4 | 37(1.46) | 1200(270) | 100 |
| JHCP-12 x 200 | 200(7.87) | 50(1.97) | ||||
| JHCP-12 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCP-12 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCP-12 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCP-12 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCP-12 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCP-12 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCP-12 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCP-12 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCP-12 x 650 | 650(25.59) | 167(6.57) | ||||
| JHCP-12 x 700 | 700(27.56) | 180(7.09) | ||||
| JHCP-15 x 200 | 200(7.87) | 15(0.59) | 0.55 | 50(1.97) | 1500(337) | 100 |
| JHCP-15 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCP-15 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCP-15 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCP-15 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCP-15 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCP-15 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCP-15 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCP-15 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCP-15 x 650 | 650(25.59) | 167(6.57) | ||||
| JHCP-15 x 700 | 700(27.56) | 180(7.09) | ||||
| JHCP-15 x 750 | 750(29.53) | 191(7.52) | ||||
| JHCP-15 x 800 | 800(31.5) | 193(7.59) | ||||
| JHCP-15 x 1000 | 1000(39.37) | 206(8.11) |
