| Product Name: | Stainless Steel Cable Ties | Color: | Naked(body) |
|---|---|---|---|
| Sample: | Free Sample | Applications: | Shipbuilding Industry,Oil Pipeline,Power Industry,communications |
| Length: | All Length Are Available | Material: | Stainless Steel 304 |
| High Light: | metal cable ties,stainless steel tie wraps |
||

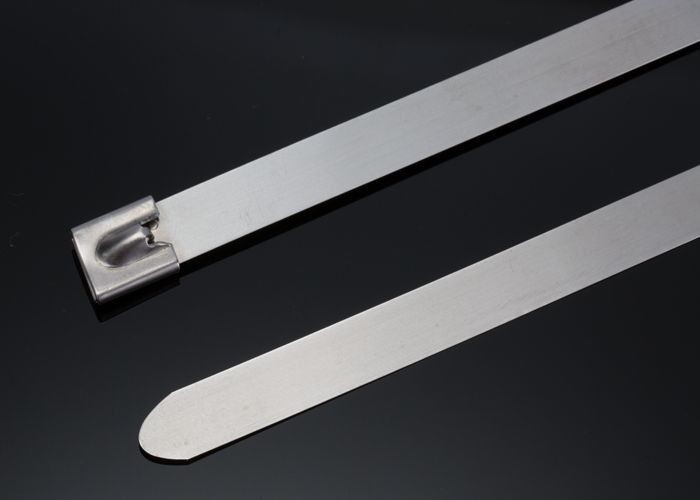

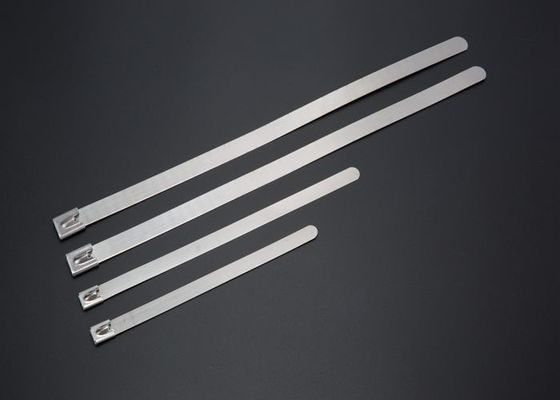

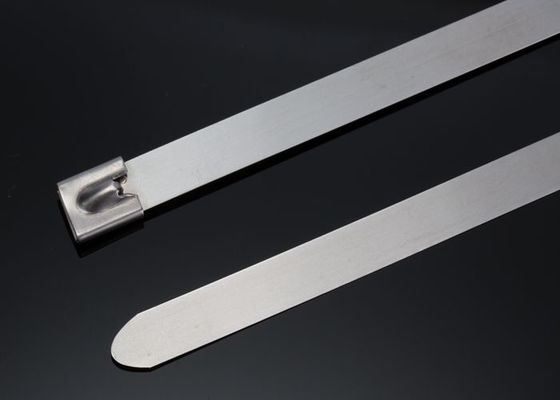

Self Locking Stainless Steel Cable Zip Ties - Uncoated Ball Locking Metal Ties
Product Feature
Uncoated version, for high temperature applications,Round Safe Edge and High Strength.
Applications:
Ieal for petrochemical, food industry, industries, power stations, mining, ship-building, offshore and any other aggressive environments.
Technical Information
Material: Stainless Steel Grade 304 or 316
304 grade stainless steel, for standard applications
316 grade stainless steel, for extra corrosive environments
Working Temp.: -80℃ to 538℃
Description: Metallic band and buckle
Flammability: Fireproof
Other Properties: UV-resistant.
| Part No. | Approx. length. mm(inch) |
Approx. width mm(inch) |
Thickness mm |
Max. Bundle Dia. mm(inch) |
Min.loop tensile strength N(lbs) |
Pcs/Bag |
| JHCN-4.6 x 150 | 150(5.9) | 4.6(0.181) | 0.25 | 37(1.46) | 600(135) | 100 |
| JHCN-4.6 x 200 | 200(7.87) | 50(1.97) | ||||
| JHCN-4.6 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCN-4.6 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCN-4.6 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCN-4.6 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCN-4.6 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCN-4.6 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCN-4.6 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCN-4.6 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCN-7.9 x 150 | 150(5.9) | 7.9(0.311) | 0.25 | 37(1.46) | 800(180) | 100 |
| JHCN-7.9 x 200 | 200(7.87) | 50(1.97) | ||||
| JHCN-7.9 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCN-7.9 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCN-7.9 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCN-7.9 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCN-7.9 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCN-7.9 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCN-7.9 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCN-7.9 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCN-7.9 x 650 | 650(25.59) | 167(6.57) | ||||
| JHCN-7.9 x 700 | 700(27.56) | 180(7.09) | ||||
| JHCN-7.9 x 750 | 750(29.53) | 191(7.52) | ||||
| JHCN-7.9 x 800 | 800(31.5) | 193(7.59) | ||||
| JHCN-12 x 150 | 150(5.9) | 12(0.472) | 0.25 | 37(1.46) | 1200(270) | 100 |
| JHCN-12 x 200 | 200(7.87) | 50(1.97) | ||||
| JHCN-12 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCN-12 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCN-12 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCN-12 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCN-12 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCN-12 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCN-12 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCN-12 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCN-12 x 650 | 650(25.59) | 167(6.57) | ||||
| JHCN-12 x 700 | 700(27.56) | 180(7.09) | ||||
| JHCN-15 x 200 | 200(7.87) | 15(0.59) | 0.4 | 50(1.97) | 1500(337) | 100 |
| JHCN-15 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCN-15 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCN-15 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCN-15 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCN-15 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCN-15 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCN-15 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCN-15 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCN-15 x 650 | 650(25.59) | 167(6.57) | ||||
| JHCN-15 x 700 | 700(27.56) | 180(7.09) | ||||
| JHCN-15 x 750 | 750(29.53) | 191(7.52) | ||||
| JHCN-15 x 800 | 800(31.5) | 193(7.59) | ||||
| JHCN-15 x 1000 | 1000(39.37) | 206(8.11) |
