Product Details:
Payment & Shipping Terms:
|
| Material: | Nylon And PP | Sample: | Free |
|---|---|---|---|
| Fireproof: | 94v-2 | Application: | Machine,distribution Plate And Electrical |
| Waterproof: | IP68 | Color: | Black,white And Other Colors |
| High Light: | ip68 cable gland,pg cable glands |
||

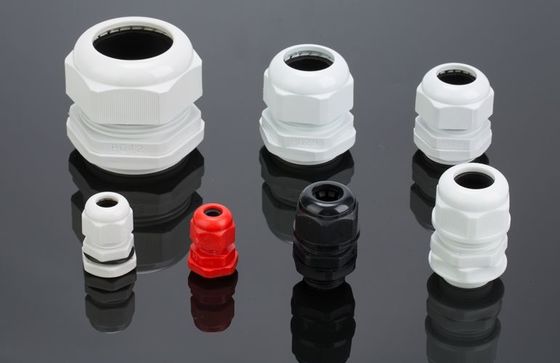

PG Type Nylon66 Cable Gland for Protect Cable, White and Black Color
Thread Spec. :PG, M(Metric),NPT
Material: made of Ul approvd nylon PA66 and Nitrile Butadiene rubber (NBR)
Working Temperature: -40℃ ~ 100℃ in static state,instantaneous heat resistance up to 120℃;
-20℃ to 80℃ in dynamic state,instantaneous heat resistance up to 100℃

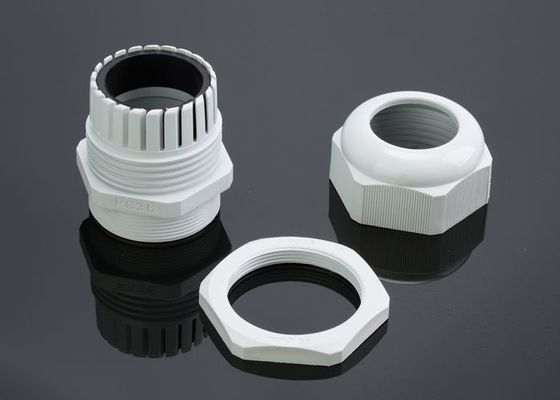

Characteristics: Special design of clamping die and rubber part,large range in clamping cable,
ultra-strong stretching resistance,waterproof,dustproof,and high ability to resist salt,
acid, alkali, alcohol,grease and general solvent.
| AG | Cable Range | GL | H | Spanner Size |
| mm | mm | mm | mm | |
| M12×1.5 | 3--6.5 | 9 | 22 | 16 |
| M16×1.5 | 4--8 | 9 | 26 | 20 |
| M18×1.5 | 5--10 | 9 | 27 | 22 |
| M20×1.5 | 6--12 | 10 | 28 | 24 |
| M22×1.5 | 10--14 | 10 | 30 | 27 |
| M24×1.5 | 12--15 | 10 | 30 | 27 |
| M25×1.5 | 13-18 | 10 | 35 | 33 |
| M27×1.5 | 13-18 | 10 | 35 | 33 |
| M30×1.5 | 16-21 | 11 | 34 | 36 |
| M32×1.5 | 16-21 | 11 | 34 | 36/37 |
| M36×1.5 | 18-25 | 12 | 40 | 43-44 |
| M40×1.5 | 22-32 | 14 | 48 | 52/53 |
| M50×1.5 | 32-38 | 14 | 49 | 60/61 |
| M63×1.5 | 37-44 | 14 | 50 | 67 |
| AG | Cable Range | GL | H | Spanner Size |
| mm | mm | mm | mm | |
| PG7 | 3--6.5 | 9 | 22 | 16 |
| PG9 | 4--8 | 9 | 26 | 20 |
| PG11 | 5--10 | 9 | 27 | 22 |
| PG13.5 | 6--12 | 10 | 28 | 24 |
| PG16 | 10--14 | 10 | 30 | 28 |
| PG19 | 12--15 | 10 | 30 | 27/28 |
| PG21 | 13-18 | 10 | 35 | 33 |
| PG25 | 16-21 | 11 | 34 | 36 |
| PG29 | 18-25 | 12 | 40 | 43/44 |
| PG36 | 22-32 | 15 | 48 | 52/53 |
| PG42 | 32-38 | 14 | 49 | 60/61 |
| PG48 | 37-44 | 17 | 50 | 68 |
| PG63 | 42-50 | 27 | 60 | 72 |
| AG | Cable Range | GL | H | Spanner Size |
| mm | mm | mm | mm | |
| NPT3/8" | 4--8 | 15 | 26 | 19 |
| NPT1/2" | 6--12 | 13 | 30 | 24 |
| NPT3/4" | 13-18 | 15 | 37 | 33 |
| NPT1" | 18-25 | 16 | 40 | 41 |
